MC74LCX05

Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Output Sink Capability• Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requireme...

product image

MC74LCX05 Picture
See larger image
SeekIC No. : 004417047 Detail

MC74LCX05: Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Output Sink C...

MC74LCX05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LCX05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Output Sink Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System
  Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V


Pinout

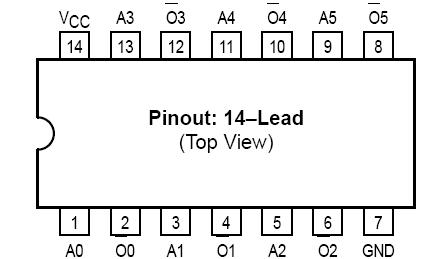

Connection Diagram


Description

The MC74LCX05 is a high performance open drain hex inverter operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers. A VI specification of 5.5V allows MC74LCX05 inputs to be safely driven from 5V devices.

The MC74LCX05 requires the addition of an external resistor to perform a wireNOR function. The open drain output with a 5V pullup resistor can be utlilized to drive 5V CMOS inputs. Current drive capability is 24mA at the outputs.
