Product Details

Description



Features:

• Bidirectional Data Path
• A and B Outputs Sink 24 mA/Source 24 mA
• 4ACT640 Has TTL Compatible Inputs


Pinout

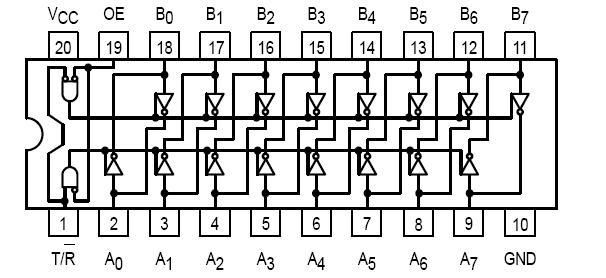

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
Vin DC Input Voltage (Referenced to GND) 0.5 to VCC +0.5 V
Vout DC Output Voltage (Referenced to GND) 0.5 to VCC +0.5 V
Iin DC Input Current, per Pin ±20 mA
Iout DC Output Sink/Source Current, per Pin ±50 mA
ICC DC VCC or GND Current per Output Pin ±50 mA
Tstg Storage Temperature 65 to +150 °C
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended
Operating Conditions


Description

The MC74AC640/74ACT640 octal bus transceiver is designed for asynchronous two-way communication between data buses. The device transmits data from bus A to bus B when T/R = HIGH, or from bus B to bus A when T/R = LOW. The enable input can be used to disable the device so the buses are effectively isolated.
