Product Details

Description



Features:

􀀀· Short-Circuit Protection
􀀀· Wide Common-Mode and Differential Voltage Ranges
􀀀· No Frequency Compensation Required
􀀀· Low Power Consumption
􀀀· No Latch-Up
􀀀· Designed to Be Interchangeable With Motorola MC1558/MC1458 and Signetics
S5558/N5558




Pinout

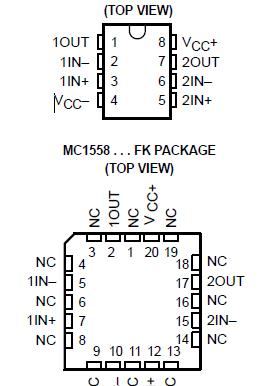

  Connection Diagram


Specifications

Supply voltage, VCC+ (see Note 1): MC1458 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  18 V
                                                        MC1558 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 V
Supply voltage, VCC (see Note 1): MC1458 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V
                                                        MC1558 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ±30 V
Input voltage, VI (either input, see Notes 1 and 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . ±15 V
Duration of output short circuit (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. Unlimited
Operating virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 150°C
Package thermal impedance, JA (see Notes 5 and 6): D package . . . . . . . . . . . . . . . . . . . . 97°C/W
                                                                                      P package . . . . . . . . . . . . . . . . . . . . .85°C/W
                                                                                      PS package . . . . . . . . . . . . . . . . . . .. 95°C/W
Package thermal impedance, JC (see Notes 7 and 8): FK package . . . . . . . . . . . . . . . . . . 5.61°C/W
                                                                               JG package . . . . . . . . . . . . . . . . . . . . . . 14.5°C/W
Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: JG package . . . . . . . . . . . . . . . . . . . . 300°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: D, P, or PS package . . . . . . . . . . . . . 260°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, unless otherwise noted, are with respect to the midpoint between VCC+ and VCC.
2. Differential voltages are at IN+ with respect to IN.
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
4. The output can be shorted to ground or either power supply. For the MC1558 only, the unlimited duration of the  hort circuit applies
at (or below) 125°C case temperature or 70°C free-air temperature.
5. Maximum power dissipation is a function of TJ(max), JA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) TA)/JA. Operating at the absolute maximum TJ of 150°C can affect  eliability.
6. The package thermal impedance is calculated in accordance with JESD 51-7.
7. Maximum power dissipation is a function of TJ(max), JC, and TC. The maximum allowable power dissipation at any allowable case temperature is PD = (TJ(max) TC)/JC. Operating at the absolute maximum TJ of 150°C can affect reliability.
8. The package thermal impedance is calculated in accordance with MIL-STD-883.




Description

The MC1458 and MC1558 are dual general-purpose operational amplifiers, with each half electrically similar to the A741, except that offset null capability is not provided.

The high-common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The MC1458 and MC1558 are short-circuit protected and the internal frequency compensation ensures stability without external components.
