Features:

• Maximum Frequency > 1.0 GHz Typical
• 50 ps Output−to−Output Skew
• PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V
• NECL Mode Operating Range: VCC = 0 V with VEE = −3.0 V to −5.5 V
• Open Input Default State
• Safety Clamp on Inputs
• Synchronous Enable/Disable
• Master Reset for Synchronization of Multiple Chips
• VBB Output



Pinout

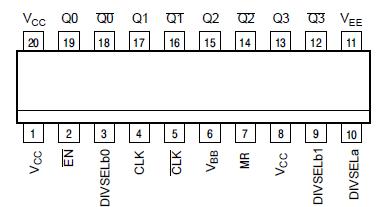

  Connection Diagram


Specifications

Symbol Parameter Condition 1 Condition 2 Rating Unit
VEE NECL Mode Power Supply VEE = 0 V   6 V
VCC PECL Mode Power Supply VCC = 0 V   -6 V
VI PECL Mode Input Voltage
NECL Mode Input Voltage
VEE = 0 V
VCC = 0 V
VI  VCC
VI  VEE
6
-6
V
Iout Output Current Continuous
Surge
  50
100
mA
IBB VBB Sink/Source     ± 0.5 mA
TA Operating Temperature Range 40 to +85 °C
Tstg Storage Temperature Range     -65 to +150 °C
JA Thermal Resistance (Junction-to-Ambient) 0 lfpm
500 lfpm
TSSOP−20
TSSOP−20
140
100
°C/W
JC Thermal Resistance (Junction-to-Case) Standard Board TSSOP−20 23 to 41 °C/W
JA Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm
SOIC−20
SOIC−20
90
60
°C/W
JC Thermal Resistance (Junction−to−Case) Standard Board TSSOP−20 33 to 35 °C/W
Tsol Wave Solder <2 to 3 sec @ 248°C   265 °C
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.


Description

The MC100EP139 is a low skew ÷2/4, ÷4/5/6 clock generation chip designed explicitly for low skew clock generation applications. The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned. The MC100EP139 can be driven by either a differential or single−ended ECL or, if positive power supplies are used, LVPECL input signals. In addition, by using the VBB output, a sinusoidal source can be AC coupled into the device. If a single−ended input is to be used, the VBB output should be connected to the CLK input and bypassed to ground via a 0.01 F capacitor.

The common enable (EN) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state. This avoids any chance of generating a runt clock pulse on the internal clock when the MC100EP139 is enabled/disabled as can happen with an asynchronous control. The internal enable flip−flop is clocked on the falling edge of the input clock, therefore, all associated specification limits are referenced to the negative edge of the clock input.

Upon start−up, the internal flip−flops will attain a random state; therefore, for systems which utilize multiple MC100EP139s, the master reset (MR) input must be asserted to ensure synchronization. For systems which only use one EP139, the MR pin need not be exercised as the internal divider design ensures synchronization between the ÷2/4 and the ÷4/5/6 outputs of a single device. All VCC and VEE pins must be externally connected to power supply to guarantee proper operation.
The 100 Series contains temperature compensation.
