M5M5V208FP

Features: • Single 2.7 ~ 3.6V power supply• W-version: operating temperature of -20 to +70°C• No clocks, No refresh• All inputs and outputs are TTL compatible.• Easy memory expansion and power down by S1 & S2• Data retention supply voltage=2.0V• Three-...

product image

M5M5V208FP Picture
See larger image
SeekIC No. : 004406326 Detail

M5M5V208FP: Features: • Single 2.7 ~ 3.6V power supply• W-version: operating temperature of -20 to +70°C• No clocks, No refresh• All inputs and outputs are TTL compatible.• Easy me...

M5M5V208FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5V208FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 2.7 ~ 3.6V power supply
• W-version: operating temperature of -20 to +70°C
• No clocks, No refresh
• All inputs and outputs are TTL compatible.
• Easy memory expansion and power down by S1 & S2
• Data retention supply voltage=2.0V
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Common Data I/O
• Battery backup capability
• Small stand-by current ` ` ` ` ` ` ` ` ` ` 0.3A(typ.)


Application

Small capacity memory units
Battery operating system
Handheld communiation tool

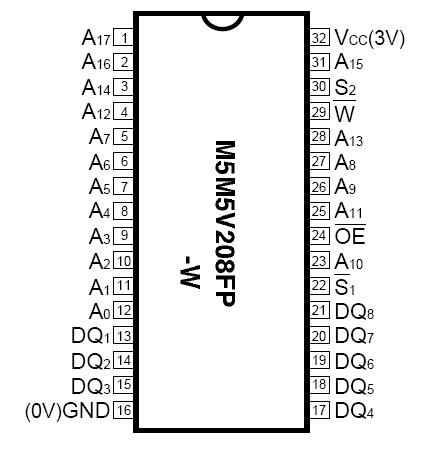

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
VCC Supply voltage With respect to GND 0.5*~4.6 V
VI Input voltage With respect to GND 0.5* ~ Vcc + 0.5
(Max 4.6		 V
VO Output voltage With respect to GND 0 ~ Vcc V
PD Power dissipation Ta=25°C 700 mW
Topr Operating temperature   20 ~ 70 °C
Tstr Storage temperature   65 ~1 °C



Description

The M5M5V208 is 2,097,152-bit CMOS static RAM organized as 262,144-words by 8-bit which is fabricated using high-performance quadruple-polysilicon and double metal CMOS technology. The use of thin film transistor(TFT) load cells and CMOS periphery results in a high density and low power static RAM. The M5M5V208 is designed for memory applications where high reliability, large storage, simple interfacing and battery back-up are important design objectives.

The M5M5V208VP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD).Two types of devices are available.

VP,KV(normal lead bend type package),RV,KR(reverse lead bend type package). Using both types of devices, it becomes very easy to design a printed circuit board.
