Product Details

Description



Features:

`Number of basic instructions .................................................... 71
`Memory size
   ROM .............. 24K bytes
   (M37150M6-XXXFP)
   32K bytes
   (M37150M8-XXXFP)
   40K bytes
   (M37150MA-XXXFP)
   48K bytes
   (M37150MC-XXXFP)
   60K bytes
   (M37150MF-XXXFP, M37150EFFP)
   RAM ............... 1024 bytes
   (M37150M6-XXXFP)
   1152 bytes
   (M37150M8-XXXFP)
   1472 bytes
   (M37150MA-XXXFP, M37150MC-XXXFP)
   2048 bytes
   (M37150MF-XXXFP, M37150EFFP)
   (*ROM correction memory included)
`Minimum instruction execution time
   ................................ 0.447 s (at 3.58 MHz oscillation frequency)
   ................................ 0.451 s (at 4.43 MHz oscillation frequency)
`Power source voltage ................................................. 5 V ± 10 %
`Subroutine nesting ............................................. 128 levels (Max.)
`Interrupts ....................................................... 17 types, 16 vectors
`8-bit timers .................................................................................. 6
`Programmable I/O ports (Ports P0, P1, P2, P30, P31) ............. 25
`Serial I/O ............................................................ 8-bit ✕ 1 channel
`Multi-master I2C-BUS interface .............................. 1 (3 systems)
`A-D comparator (7-bit resolution) ................................ 8 channels
`PWM output circuit ......................................................... 8-bit ✕ 5
`Power dissipation
   In high-speed mode ......................................................... 165 mW
   (at VCC = 5.5V, FSCIN = 3.58 MHz, OSD on, and Data slicer on)
   In low-speed mode ......................................................... 0.33 mW
   (at VCC = 5.5V, 32 kHz oscillation frequency)
`Closed caption data slicer
`ROM correction function ................................................ 2 vectors
`OSD function
   Display characters ................................... 32 characters ✕ 2 lines
   (3 lines or more can be displayed by software)
   Kinds of characters ........................................................ 254 kinds
   (coloring unit) (per charactor unit)
   Character display area ............................ CC mode: 16 ✕ 26 dots
   OSD mode: 16 ✕ 20 dots
   Kinds of character sizes ..................................... CC mode: 1 kind
   OSD mode: 8 kinds
   Kinds of character colors .................................. 8 colors (R, G, B)
   Coloring unit ................... character, character background, raster
   Display position
   Horizontal: 128 levels Vertical: 512 levels
   Attribute ........................................................................................
   CC mode: smooth italic, underline, flash, automatic solid space
   OSD mode: border
   Smoth roll-up
   Window functio


Application

·TV with closed caption decoder


Pinout

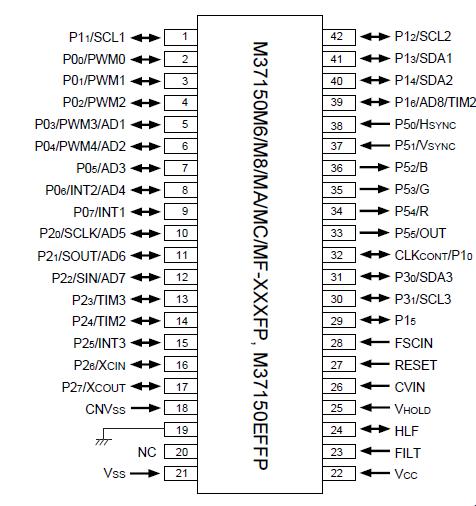

Connection Diagram


Specifications

Symbol
 Parametear Conditions
Ratings
Unit
VCC
 Power source voltage VCC All voltages are based
on VSS.
Output transistors are
cut off.
0.3 to 6
V
VI
 Input voltage CNVSS
0.3 to 6
V
VI
 Input voltage P00P07, P10P16, P20P27,
P30, P31, P50, P51, RESET, CVIN
0.3VCC + 0.3
V
VO
 Output voltage P06, P07, P10P16, P20P27,
P30, P31, P52P55
0.3VCC + 0.3
V
IOH
 Circuit current P10P16, P20P27, P30, P31,
P52P55,
0 to 1 (See note 1)
mA
IOL1
 Circuit current P00P07, P10P15, P16, P20P23
P52P55,
0 to 2 (See note 2)
mA
IOL2
 Circuit current P11P14, P30, P31
0 to 6 (See note 2)
mA
IOL4
 Circuit current P24P27
0 to 10 (See note 3)
mA
Pd
 Power dissipation Ta = 25 °C
550
mW
Topr
 Operating temperature
10 to 70
°C
Tstg
 Storage temperature
40 to 125
°C




Description

The M37150M6/M8/MA/MC/MF-XXXFP and M37150EFFP are single-chip microcomputers designed with CMOS silicon gate technology. They have an OSD, data slicer, and I2C-BUS interface, making them perfect for TV channel selection systems with a closed caption decoder. The M37150EFFP has a built-in PROM that can be written electrically.
