M27C160

Features: ` 5V ± 10% SUPPLY VOLTAGE in READ OPERATION` ACCESS TIME: 50ns` BYTE-WIDE or WORD-WIDE CONFIGURABLE` 16 Mbit MASK ROM REPLACEMENT` LOW POWER CONSUMPTION Active Current 70mA at 8MHz Standby Current 100A` PROGRAMMING VOLTAGE: 12.5V ± 0.25V` PROGRAMMING TIME: 50s/word` ELECTRONIC SIGNATURE ...

product image

M27C160 Picture
See larger image
SeekIC No. : 004404221 Detail

M27C160: Features: ` 5V ± 10% SUPPLY VOLTAGE in READ OPERATION` ACCESS TIME: 50ns` BYTE-WIDE or WORD-WIDE CONFIGURABLE` 16 Mbit MASK ROM REPLACEMENT` LOW POWER CONSUMPTION Active Current 70mA at 8MHz Standby...

M27C160 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M27C160
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  5V ± 10% SUPPLY VOLTAGE in READ OPERATION
`  ACCESS TIME: 50ns
`  BYTE-WIDE or WORD-WIDE CONFIGURABLE
`  16 Mbit MASK ROM REPLACEMENT
`  LOW POWER CONSUMPTION
Active Current 70mA at 8MHz
Standby Current 100A
`  PROGRAMMING VOLTAGE: 12.5V ± 0.25V
`  PROGRAMMING TIME: 50s/word
`  ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: B1h


Pinout

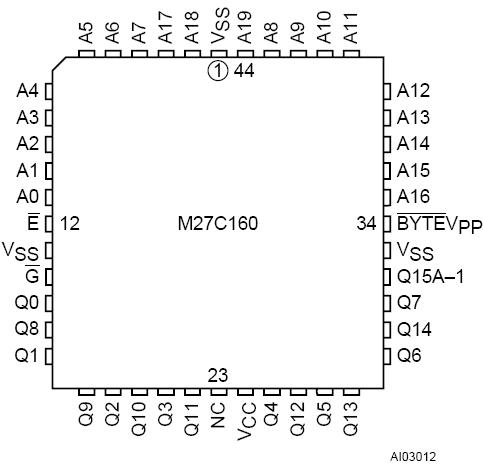

Connection Diagram


Specifications

Symbol Parameter Value Unit
TA Ambient Operating Temperature 40 to 125 °C
TBIAS Temperature Under Bias 50 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VIO Input or Output Voltage (except A9) 2 to 7 V
VCC Supply Voltage 2 to 7 V
VA9 A9 Voltage 2 to 13.5 V
VPP Program Supply Voltage 2 to 14 V
Note: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may
cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions
above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions
for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality
documents.
2. Minimum DC voltage on Input or Output is 0.5V with possible undershoot to 2.0V for a period less than 20ns. Maximum DC
voltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period less than 20ns.
3. Depends on range.


Description

The M27C160 is a 16 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organised as either 2 Mbit words of 8 bit or 1 Mbit words of 16 bit. The pin-out is compatible with a 16 Mbit Mask ROM.

The M27C160 (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written rapidly to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C160 is offered in PDIP42, SDIP42, PLCC44 and SO44 packages.
