HI1386

This is the description about HI1386 of the 8-Bit, 75 MSPS, Flash A/D Converter. The HI1386 is an 8-bit, high-speed flash analog-to-digital converter IC capable of digitizing analog signals at a maximum rate of 75 MSPS. The digital I/O levels of this A/D converter are compatible with ECL 100K/10KH/10K. The HI1386 is available in the commercial and industrial temperature range and is supplied in 28 lead plastic DIP and 44 lead ceramic LCC packages.

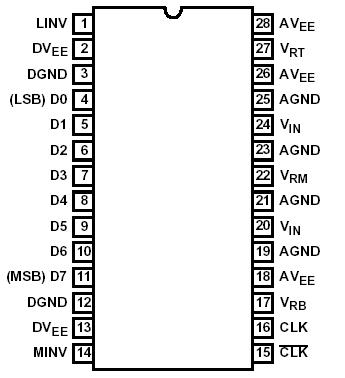

Here are the features of HI1386: Differential Linearity Error ±0.5 LSB or Less; Integral Linearity Error ±0.5 LSB or Less; Built-In Integral Linearity Compensation Circuit; High-Speed Operation with Maximum Conversion Rate: 75 MSPS; Wide Analog Input Bandwidth (Min for Full Scale Input) 150MHz; Operable at 50% Clock Duty Cycle;Capable of Driving 50? Loads. Direct Replacement for CXA1386.
The absolute Maximum Ratings of HI1386are these (TA = 25). Supply Voltage is from -7V to +0.5V. Analog Input Voltage (VIN) is from -2.7V to +0.5V. Reference Input Voltage (VRT, VRB, VRM) is from -2.7V to +0.5V. Reference Input Voltage (|VRT -VRB|) is 2.5V. VRM Pin Input Current (IVRM) is from -3mA to +3mA. Digital Output Current (ID0 to ID7) is from -30mA to 0mA. Maximum Storage Temperature Range is from -65C to 150C. Maximum Lead Temperature (Soldering 10s) is 300oC. CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
