Features:

 Up to 2.5 Gbps Bi-directional Data Links
 Compliant with 1X / 2X   Fibre Channel FC-PI 13.0
 Compliant with Gigabit Interface Converter (GBIC)
    Specification Rev. 5.5
 850 nm VCSEL Laser Transmitter
 Hot Pluggable module with Duplex SC Connector
 Multi-rate Operation for 2.5 / 2.125  / 1.062  / 1.25 Gbps
 Link Distance at 2.125 Gbd 150 m links with 62.5/125 mm MMF Cables 300 m links with 50/125 mm MMF Cables
 Link Distance at 1.026 Gbd 300 m links with 62.5/125 mm MMF Cables 550 m links with 50/125 mm MMF Cables
 SCA-2 Host Connector
 Single +5 V Power Supply
 Differential PECL Inputs and Outputs
 TTL RX-LOS Output
 Class 1 Laser International Safety Standard IEC-60825
    Compliant



Application

Switch to Switch Interface
High Speed Interface for File Servers
Data Storage
Dual Rate 1.06 / 2.125 Gb/s Fibre Channel



Pinout

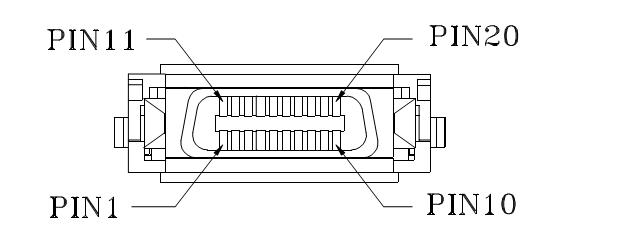

  Connection Diagram


Specifications

Parameter Symbol Min Max Units Notes
Storage Temperature Tstg -40 85
Operating Temperature Topr -5 70 Air flow1m/sec
Power Supply Voltage Vcc -0.5 6 V
Input Voltage --- -0.5 VCC V



Description

The GBM-9000F  series optical transceivers meet the Gigabit  Interface Converter  (GBIC) specification Rev. 5.5. GBM-9000F satisfies the  optical interface specifications defined in IEEE 802.3z Drift 5.0 1000 BASE-SX for Gigabit Ethernet and 1x / 2x Fibre Channel  FC-PI 13.0. GBM-9000F is designed for multi-mode fiber and  operates at a nominal wavelength of 850 nm. The transmitter  section  uses  a  multiple  quantum well VCSEL  and is a class 1  laser compliant according to International Safety Standard IEC-  60825. The receiver  section of GBM-9000F uses an integrated GaAs  detector  preamplifier (IDP) mounted in an optical header and a limiting  post-amplifier IC. A PECL input / output logic interface is used.   TTL RX-LOS output simplifies interface to external circuitry. A  20-pin SCA-2 host connector is used to connect the converter to  the host system.
