Product Details

Description



Features:

 Buffered Inputs
 Asynchronous Parallel Load
 Complementary Outputs
 Fanout (Over Temperature Range)
    - Standard Outputs. . . . . . . . . . . . . . . 10 LSTTL Loads
    - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
 Wide Operating Temperature Range . . . -55 to 125
 Balanced Propagation Delay and Transition Times
 Significant Power Reduction Compared to LSTTLLogic ICs
 HC Types
    - 2V to 6V Operation
    - High Noise Immunity: NIL= 30%, NIH = 30% of VCCat VCC  = 5V
    - 4.5V to 5.5V Operation
    - Direct LSTTL Input Logic Compatibility,
      VIL= 0.8V (Max), VIH= 2V (Min)
    - CMOS Input Compatibility, Il 1Aat VOL, VOH

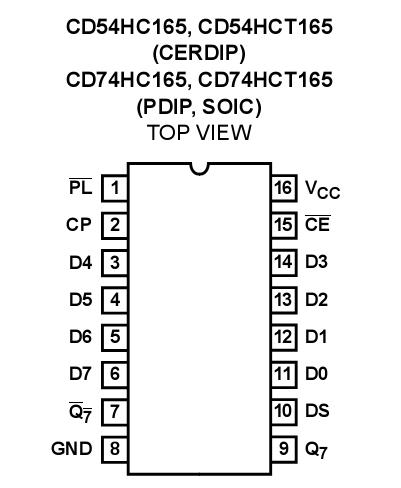

Pinout

  Connection Diagram


Specifications

DC Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
     For VI< -0.5V or VI > VCC + 0.5V . . . . . . . . . . . .  . . . . .±20mA
DC Output Diode Current, IOK
     For VO < -0.5V or VO > VCC + 0.5V . . . . . . . .  . . .  . . . .±20mA
DC Drain Current per Output, IO
     For VO < -0.5V VO > VCC + 0.5V . . . . . . . .  . . . . . . . . . .±25mA
DC Output Source or Sink Current per Output Pin, IO
     For VO > -0.5V or VO < VCC + 0.5V . . . . . . . .. . . . . . . . .±25mA
DC VCC or Ground Current, ICC or IGND. . . . . . . . . . . . . . . .±50mA



Description

The 'HC165 and 'HCT165 are 8-bit parallel or serial-in shiftregisters with complementary serial outputs (Q7and Q7)available from the last stage. When the parallel load (PL)input is LOW, parallel data from the D0 to D7 inputs areloaded into the register asynchronously. When the PL isHIGH, data enters the register serially at the DS input and
shifts one place to the right (Q0Q1Q2 , etc.) with eachpositive-going clock transition. CD74HCT165 feature allows parallel-to-serial converter expansion by typing the Q7 output to theDS input of the succeeding device.

For CD74HCT165 predictable operation the LOW-to-HIGH transition of CE
                                                                                         CE
should be LOW before the LOW-to-HIGH transition of PL toprevent shifting the data when PL goes HIGH.
