Product Details

Description



Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab

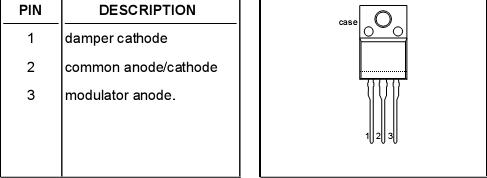

Pinout

Connection Diagram


Specifications

DAMPER MODULATOR
SYMBOL PARAMETER CONDITIONS MIN MAX MIN MAX UNIT
VRSM Peak non-repetitive reverse voltage. - 1500 - 600 V
VRRM Peak repetitive reverse voltage 1500 600 V
VRWM Crest working reverse voltage - 1300 - 600 V
I F(peak) Peak forward current 31-70 kHz monitor. 7 7 A
I F(RMS) RMS forward current sinusoidal;a=1.57 - 15.7 - 14.1 A
IFSM Peak non-repetitive forward current t = 10 ms 60 70 A
t = 8.3 ms - 66 - 77
sinusoidal;with reapplied
VRWM(MAX) - -
Tstg Storage temperature -40 150 -40 150 ˚C
TJ Operating junction temperature - 150 - 150 ˚C



Description

Combined damper and modulator diodes in an isolated plastic envelopeforhorizontaldeflectionin colour TV and PC monitors. The BYM357X contains diodes with performance characteristics   designed specifically for  applications from 16kHz to 70kHz

TheBYM357Xseries issuppliedin the conventional leaded SOT186A package.
