Product Details

Description

Pinout

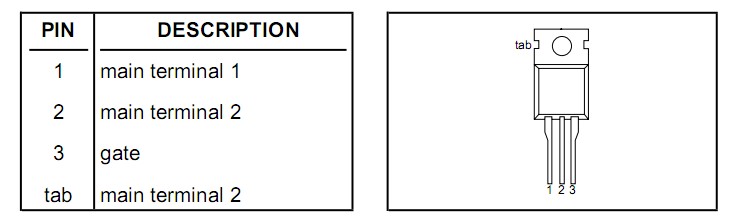

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DRM	Repetitive peak off-state voltages		-	-600 600	V
I_T(RMS)	RMS on-state current	full sine wave;T_mb 99 ˚C	-	12	A
I_TSM	Non-repetitive peak on-state current	full sine wave; T_j= 25 ˚C prior to surge t = 20 ms t = 16.7 ms	- -	95 105	A A
I²t	I²t for fusing	t = 10 ms	-	45	A²s
dI_T/dt	Repetitive rate of rise of on-state current after triggering	I_TM = 1,5A; I_G = 0.2 A; dI_G/dt =0.2 A/µs	-	100	A/µs
I_GM	Peak gate current	over any 20 ms period	-	2	A
P_GM	Peak gate power		-	5	W
P_G(AV)	Average gate power		-	0.5	W
T_stg	Storage temperature		-40	150	˚C
T_j	Operating junction temperature		-	125	˚C

Description

Passivated guaranteed commutationtriacs BTA212 in a plastic envelope intended for use in motor control circuits or with other highly inductive loads. BTA212 balance the requirements of commutation performance and gate sensitivity. The "sensitive gate" E series and "logic level" D series are intended for interfacing with low power drivers, including micro controllers.
