Features:

• 1.65V to 8V supply range
• Typical output regulation of ±1%
• Over 85% typical efficiency
• Output currents up to 300mA
• 4.5A typical shutdown current ZXSC410
• End of regulation output ZXSC420




Application

• System power for battery portable products
• LCD bias
• Local voltage conversion




Pinout

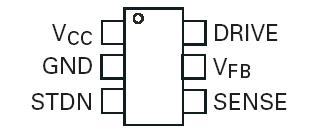

Connection Diagram




Specifications

VCC. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . ..... -0.3V to +10V
DRIVE. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .-0.3V to VCC + 0.3V
EOR. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . -0.3V to VCC + 0.3V
STDN. . . . . . . . . . . . . . . -0.3V to The lower of (+5.0V) or (VCC + 0.3V)
VFB, SENSE. . . . . . . . . . -0.3V to The lower of (+5.0V) or (VCC + 0.3V)
Operating Temp.. . . . . . . . . . . . . . . . . .. . . . . . . . . . -40°C to +85°C
Storage Temp.. . . . . . . . . . . . . . . . . .. . . . . . . . . . -55°C to +125°C
Power Dissipation. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .450mW

Part Number ZXSC410
Type Boost
Min and Max Input Voltage (V) 1.8 ~ 8
Output Voltage (V) Vin to Vm
Frequency (Hz) 200K Fixed
Efficiency (%) 85
Standby Quiescent Current (uA) typ 150





Description

The ZXSC410 is voltage mode boost converter in SOT23-6 package. Its excellent load and line regulation means that for the full supply range from lithium Ion cells, the output voltage will typically change by less than 1%. Using high efficiency Zetex switching transistors allow output voltages of tens of volts depending on the selected transistor. The ZXSC420 includes a battery low indicator. This operates by indicating when the converter is no longer able to maintain the regulated output voltage rather than setting a preset threshold, thereby making it suitable for various battery options and load currents.
