Product Details

Description



Features:

• 4 Buffers per package
• Low distortion Class A O/P
• 100MHz bandwidth
• Low cost
• Designed for up to 300pF load
• Low supply current (7.5mA per buffer)
• No thermal runaway
• 14 pin SOIC package


Application

• Video Switching Matrix input buffer
• Instrumentation
• Multi-channel A/D input buffer
• Multi-isolation buffer


Pinout

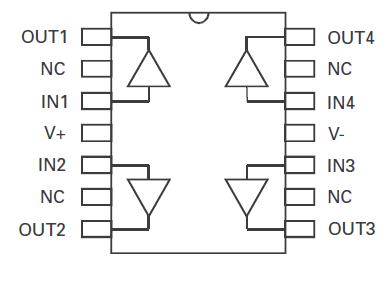

Connection Diagram


Specifications

Voltage on any pin                                                                   20V (relative to V-)
Operating temperature range                    0 to 70°C (de-rated for -40 to 85°C)
Storage Temperature                                                                      -55 to 125°C


Description

The ZXFBF05 is a low cost, high slew rate, quad buffer amplifier. Built using the Zetex CA700 technology, this buffer has a small signal bandwidth of greater than 100MHz and a 1 volt pk-pk bandwidth of greater than 20 MHz. Each channel draws only 7.5mA. The device operates from a ±5 volt supply, which makes it ideal in a majority of applications.

This space saving buffer may be used in a wide variety of applications such as, video switching matrix, multi-channel instrumentation equipment, and A/D input buffer, etc.
