ZXBM2002

Features: ` Built in lock detect protection, rotational speed sensing and automatic recovery` Built in Hall amplifier allows direct connection to Hall element` PWM Speed control can be implemented via external voltage or resistance (thermistor) input` Speed (FG) pulse output ZXBM2003` Rotor lock ...

product image

ZXBM2002 Picture
See larger image
SeekIC No. : 004552328 Detail

ZXBM2002: Features: ` Built in lock detect protection, rotational speed sensing and automatic recovery` Built in Hall amplifier allows direct connection to Hall element` PWM Speed control can be implemented v...

ZXBM2002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZXBM2002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Built in lock detect protection, rotational speed sensing and automatic recovery
` Built in Hall amplifier allows direct connection to Hall element
` PWM Speed control can be implemented via external voltage or resistance (thermistor) input
` Speed (FG) pulse output ZXBM2003
` Rotor lock output ZXBM2002
` Combined Rotor Lock (RD) and Speed (FG) signal ZXBM2001
` Up to 18V input voltage (60V with external regulator)
` MSOP10 package




Application

· Mainframe and Personal Computer Fans and Blowers
· Instrumentation Fans
· Central Heating Blowers
· Automotive climate control




Pinout

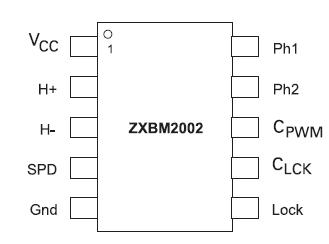

Connection Diagram






Specifications

Parameter
Symbol
Limits
Unit
Supply Voltage
VCCmax
-0.6 to 20
V
Input Current
ICC
200
mA
Power Dissipation
PD
500
mW
Operating Temp.
TOPR
-40 to 85
Storage Temp.
TSTG
-55 to 125





Description

The ZXBM2002 is a series of 2-phase, DC brushless motor pre-drivers with PWM variable speed control suitable for fan and blower motors.
