Product Details

Description



Features:

` Built in lock detect protection, rotational speed sensing and automatic recovery
` Built in Hall amplifier allows direct connection to Hall element
` PWM Speed control can be implemented via external voltage or resistance (thermistor) input
` Speed (FG) pulse output ZXBM2003
` Rotor lock output ZXBM2002
` Combined Rotor Lock (RD) and Speed (FG) signal ZXBM2001
` Up to 18V input voltage (60V with external regulator)
` MSOP10 package




Application

· Mainframe and Personal Computer Fans and Blowers
· Instrumentation Fans
· Central Heating Blowers
· Automotive climate control




Pinout

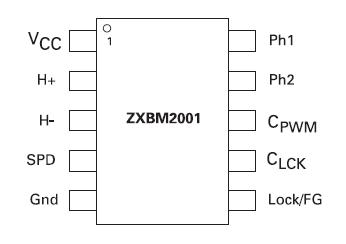

Connection Diagram




Specifications

Parameter
Symbol
Limits
Unit
Supply Voltage
VCCmax
-0.6 to 20
V
Input Current
ICC
200
mA
Power Dissipation
PD
500
mW
Operating Temp.
TOPR
-40 to 85
Storage Temp.
TSTG
-55 to 125





Description

The ZXBM200x is a series of 2-phase, DC brushless motor pre-drivers with PWM variable speed control suitable for fan and blower motors.
