Features:

· 4-18V Operating voltage range.
· Small external component count.
· Direct drive of darlington, mosfet and IGBT output stages.
· Single ended or push-pull output stages.
· Suitable for automotive and static alarm systems.
· Low supply current - 10mA operating
- 1mA sleep mode
· Low cost 8 pin DIL & SO packages.
· User selected audio and sweep frequencies.
· -40°C to 125°C operating temperature range.
· Choice of modulation waveform.

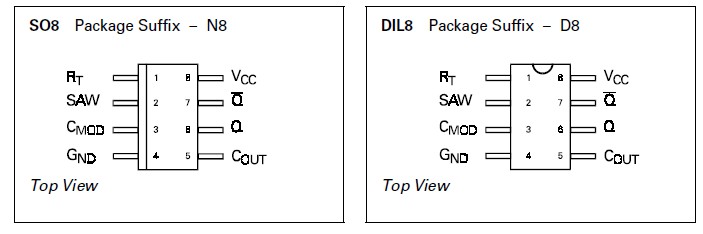

Pinout

Connection Diagram

Specifications

Vcc	-0.5V to +20V
Operating Temperature	-40 to 125
Storage Temperature	-65 to 150

Description

The ZSD100 is a frequency swept alarm signal generator designed specifically for static and automotive security alarm systems. One ZSD100, two t iming capacitors, an in-expensive TO92 darlington, piezo transducer and coupling transformer is all that is necessary to produce an ear piercing 120 dB alarm siren.

Including an audio frequency signal generator, low frequency sweep generator, disable circuitry and output driver stages, the ZSD100 provides every function necessary to produce a standard alarm signal. Available in either an 8 pin DIL or SO package the IC gives a low cost compact solution to siren signal generation. The device operates from supplies of 4V up to 18V and is ideal for security alarms in battery powered applications, burglar alarms and automotive anti theft systems.
