Product Details

Description

Features:

· Contains DAC with Data Latch and On-Chip Reference
· Guaranteed Monotonic over the Full Operating Temperature Range
·Single +5V Supply
·Microprocessor Compatible
·TTL and 5V CMOS Compatible
· 800ns Settling Time
· Complementary to ZN427 A to D Series
·Commercial or Military Temperature Range

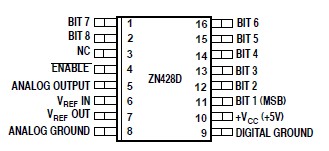

Pinout

Connection Diagram

Specifications

Supply voltage VCC	+7.0V
Max.voltage, logic and VREF inputs	+VCC
Operating temperature range	-55 to +125
Storage temperature range	-55 to +125
Analog ground to digital ground	±200mV

Description

The ZN428 is a monolithic 8-bit D-A converter with input latches to facilitate updating from a data bus. The ZN428 latch is transparent when enable is LOW and the data is held when enable is taken HIGH. The ZN428 also contains a 2.5V reference the use of which is pin optional to retain flexibility. An external fixed or varying reference may therefore be substituted.
