Features: • 2048 channel x 2048 channel non-blocking digital Time Division Multiplex (TDM) switch at 8.192 and 16.384 Mbps or using a combination of ports running at 2.048, 4.096, 8.192 and/or 16.384 Mbps• 32 serial TDM input, 32 serial TDM output streams• Integrated Digital Phas...
ZL50018: Features: • 2048 channel x 2048 channel non-blocking digital Time Division Multiplex (TDM) switch at 8.192 and 16.384 Mbps or using a combination of ports running at 2.048, 4.096, 8.192 and/or...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
• 2048 channel x 2048 channel non-blocking digital Time Division Multiplex (TDM) switch at 8.192 and 16.384 Mbps or using a combination of ports running at 2.048, 4.096, 8.192 and/or 16.384 Mbps
• 32 serial TDM input, 32 serial TDM output streams
• Integrated Digital Phase-Locked Loop (DPLL) exceeds Telcordia GR-1244-CORE Stratum 3 specifications
• Output clocks have less than 1 ns of jitter (except for the 1.544 MHz output)
• DPLL provides holdover, freerun and jitter attenuation features with four independent reference source inputs
• Programmable key DPLL parameters (filter corner frequency, locking range, auto-holdover hysteresis range, phase slope, lock detector range)
• Exceptional input clock cycle to cycle variation tolerance (20 ns for all rates)
• Output streams can be configured as bidirectional for connection to backplanes
• Per-stream input and output data rate conversion selection at 2.048, 4.096, 8.192 or 16.384 Mbps. Input and output data rates can differ
• Per-stream high impedance control outputs (STOHZ) for up to 16 output streams
• Per-stream input bit delay with flexible sampling point selection
• Per-stream output bit and fractional bit advancement
• Per-channel ITU-T G.711 PCM A-Law/-Law Translation
• Multiple frame pulse and reference clock output
• Input clock: 4.096 MHz, 8.192 MHz, 16.384 MHz
• Input frame pulses: 61 ns, 122 ns, 244 ns
• Per-channel constant or variable throughput delay for frame integrity and low latency applications
• Per Stream Bit Error Rate Test circuits
• Per-channel high impedance output control
• Per-channel message mode
• Control interface compatible with Intel and Motorola 16-bit non-multiplexed buses
• Connection memory block programming
• Supports ST-BUS and GCI-Bus standards for input and output timing
• IEEE-1149.1 (JTAG) test port
• 3.3 V I/O with 5 V tolerant inputs; 1.8 V core voltage

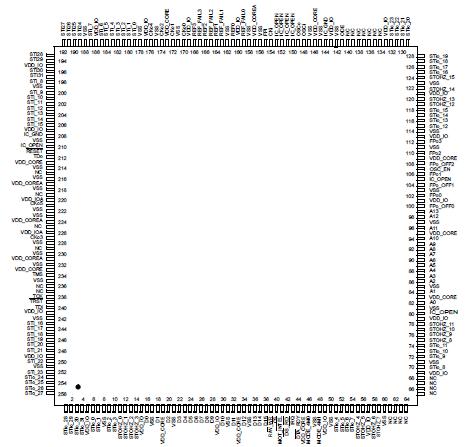

Parameter | Symbol | Min | Max | Units | |
1 | I/O Supply Voltage | V DD_IO | -0.5 | 5.0 | V |
2 | Core Supply Voltage | V DD_CORE | -0.5 | 2.5 | V |
3 | Input Voltage | V I_3V | -0.5 | VDD + 0.5 | V |
4 | Input Voltage (5 V-tolerant inputs) | V I_5V | -0.5 | 7.0 | V |
5 | Continuous Current at Digital Outputs | Io | 15 | mA | |
6 | Package Power Dissipation | PD | 1.5 | W | |
7 | Storage Temperature | TS | - 55 | +125 |
