Features:

• Quad Band GSM (800/900/1800/1900 MHz) Compatible
• Dual Band IS136 (800/1900 MHz) Compatible
• GPRS Class 12 and EDGE Capable
• Fully Integrated Dual Band Transceiver
• Receive - IF to Baseband I and Q
• Transmit - Baseband I / Q to RF
• Integrated Filters
• FM Demodulator
• RF and IF Synthesizers
• Fully Programmable via serial bus
• 3 Volt operation
• Small scale package


Application

• GAIT IS136/GSM/EDGE Mobile Telephones
• Dual Band (850/PCS1900) TDMA/AMPS Mobile Telephones
• Cellular 850MHz TDMA/AMPS Mobile Telephones
• PCS1900 TDMA Mobile Telephones


Pinout

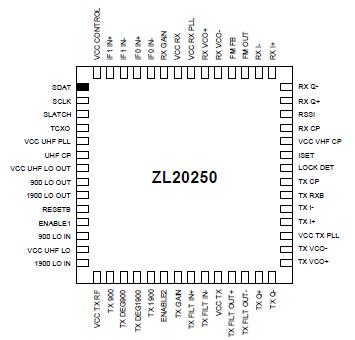

Connection Diagram


Specifications

Supply Voltage                                          -0.3 to 3.6V
Voltage applied to any pin                        -0.3 to Vcc + 0.3 V
Operating Temperature                            -40 to 85
Storage Temperature                               -55 to 125
Max Junction Temperature                       125
This device is sensitive to ESD. Anti-static precautions should be used when handling this device.


Description

The ZL20250 is a fully integrated transceiver for multimode IS136/GSM/GPRS/EDGE handsets. The dual IF inputs to the receive path are amplified and down-converted to baseband I and Q signals. Gain control is provided. Baseband filtering is also included.

A FM demodulator is also provided where AMPS compatibility is required.

The transmit path consists of a quadrature modulator, gain control at IF and up-conversion to RF. Dual band RF outputs are provided. The transmit output stages of ZL20250 can be programmed to optimize performance and current consumption.
