Features:

• Dual Band IS136 (800/1900 MHz) Compatible
• Fully Integrated Dual Band Transceiver
• Receive - IF to Baseband I and Q
• Transmit - Baseband I / Q to RF
• Integrated Filters
• FM Demodulator
• RF and IF Synthesizers
• Fully Programmable via serial bus
• 3 Volt operation
• Small scale package

Application

• Dual Band (850/PCS1900) TDMA/AMPS Mobile Telephones
• Cellular 850 MHz TDMA/AMPS Mobile Telephones
• PCS1900 TDMA Mobile Telephones
• Cellular Telematic Systems

Pinout

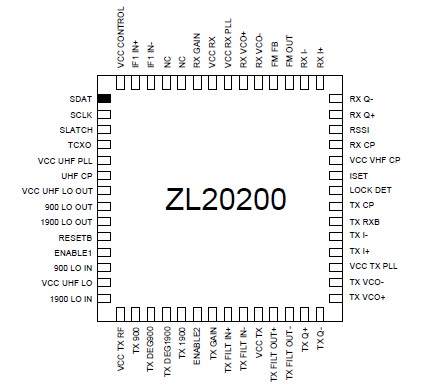

Connection Diagram

Specifications

Supply Voltage .............. -0.3 to 3.6 V
Voltage applied to any pin ..... -0.3 to Vcc + 0.3 V
Operating Temperature ......... -40 to 85
Storage Temperature ..........-55 to 125
Max Junction Temperature ............ 125

Description

The ZL20200 is a fully integrated transceiver for dual band IS136/AMPS handsets. The IF input to the receive path is amplified and down-converted to baseband I and Q signals. Gain control is provided. Baseband filtering is also included. A FM demodulator is also provided to support AMPS operation.

The transmit path consists of a quadrature modulator, gain control at IF and up-conversion to RF. Dual band RF outputs are provided. The transmit output stages can be programmed to optimize performance and current consumption.

ZL20200 also includes a fractional N RF synthesizer and two IF synthesizers to provide all local oscillator signals required.
