ZL10039

Features: • Direct conversion tuner for quadrature down conversion from L-band to Zero IF• Symbol rate 1-45 MSps• Excellent sensitivity <-84.5 dBm at 27.5 MSps• Independent RF AGC and baseband gain control• Fifth order baseband filters with bandwidth adjustable fro...

product image

ZL10039 Picture
See larger image
SeekIC No. : 004550913 Detail

ZL10039: Features: • Direct conversion tuner for quadrature down conversion from L-band to Zero IF• Symbol rate 1-45 MSps• Excellent sensitivity <-84.5 dBm at 27.5 MSps• Independen...

ZL10039 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZL10039
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Direct conversion tuner for quadrature down conversion from L-band to Zero IF
• Symbol rate 1-45 MSps
• Excellent sensitivity <-84.5 dBm at 27.5 MSps
• Independent RF AGC and baseband gain control
• Fifth order baseband filters with bandwidth adjustable from 6 to 43 MHz
• Fully integrated alignment-free low phase noise local oscillator
• Selectable RF Bypass
• I2C compatible control
• 3.3 Volt Supply
• 28 pin 5x5 mm QFN Package


Application

• DVB-S Free-to-Air Satellite receiver systems
• 8PSK Satellite Receiver Systems


Pinout

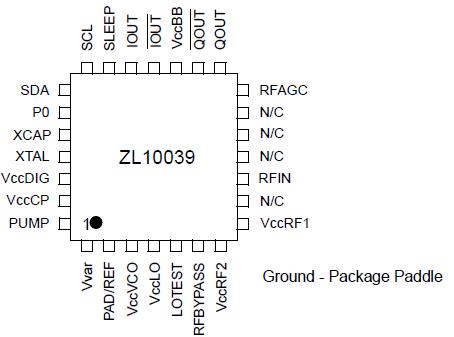

Connection Diagram


Specifications

Parameter Min. Max. Units Notes
Maximum voltage on any Vcc
pin		 -0.3 3.6 V
Maximum voltage between
any two Vcc pins		   0.3 V
Maximum voltage on any
other pin		 -0.3 Vcc + 0.3 V The voltage on any pin must
not exceed 3.6 V
P0 Output current   20 mA
Maximum RF Input   10 dBm
Storage temperature -55 150
Junction temperature   125
Package thermal resistance   34 /W Package ground paddle
soldered to ground
ESD Protection - pins 10,12
RFIN, RFIN		   1.75 kV Mil std 883B method 3015
cat1



Description

The ZL10039 is a fully integrated direct conversion tuner for digital satellite receiver systems, targeted primarily at free-to-air DVB-S receivers where high sensitivity is a priority. The device also contains a RF Bypass for connecting to a second receiver module.

The ZL10039 is simple to use, requiring no alignment or tuning algorithms and uses a minimum number of external components. The device is programmable via a I2C compatible bus.

A complete reference design (ZL10039) is available using ZL10313 demodulator.
