Features:

* Compact package
* Low on state losses
* Low drive requirements
* Operates up to 20V supply
* 2.5 Amp continuous rating




Pinout

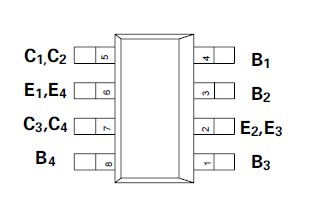

Connection Diagram




Specifications

PARAMETER SYMBOL NPNs PNPs UNIT
Collector-Base Voltage VCBO 20 -20 V
Collector-Emitter Voltage VCEO 20 -20 V
Emitter-Base Voltage VEBO 5 -5 V
Peak Pulse Current ICM 6 -6 A
Continuous Collector Current IC 2.5 -2.5 A
Operating and Storage Temperature Range Tj:Tstg -55 to +150


Part Number ZHB6718
Product Type 2 x NPN +
2 x PNP
VCEO (V) 20
-20
IC (A) 2.5
-2.5
ICM (A) 6
-6
PD (W) 2
hFE Min 200
150
@ IC (A) 2
-2
VCE (SAT) Max (mV) 150
-200
@IC (A) 1
-1
@IB (mA) 10
-20
fTMin (MHz) 140
180
