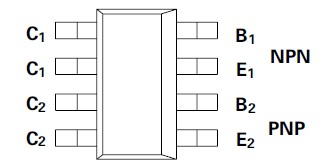

Connection Diagram

Specifications

PARAMETER	SYMBOL	NPN	PNP	UNIT
Collector-Base Voltage	V_CBO	80	-80	V
Collector-Emitter Voltage	V_CEO	60	-60	V
Emitter-Base Voltage	V_EBO	10	-10	V
Peak Pulse Current	I_CM	4	-4	A
Continuous Collector Current	I_C	1.75	-1.75	A
Operating and Storage Temperature Range	T_j:T_stg	-55 to +150

Part Number	ZDT6702
Product Type	NPN + PNP
V_CEO (V)	60 -60
I_C (A)	1.75 -1.75
I_CM (A)	4 -4
P_D (W)	2.75
h_FE Min	3500 1500
h_FE Max	-
@ I_C (A)	2 -2
V_{CE (SAT)} Max (mV)	950 -1000
@ I_C (A)	0.5 -0.5
@ I_B (mA)	0.5 -0.5
f_T Min (MHz)	140 140
R_{CE (SAT)} (m)	-
