ZC0301

Features: • Provide most cost effective PC camera solution with 28-pin package• Support VGA CMOS sensors from Hyundai• Support up to 15 fps VGA video display without DRAM• USB Device Controller compliant with USB Protocol 1.1• Support pan function based on 8x8 pixels ...

product image

ZC0301 Picture
See larger image
SeekIC No. : 004550528 Detail

ZC0301: Features: • Provide most cost effective PC camera solution with 28-pin package• Support VGA CMOS sensors from Hyundai• Support up to 15 fps VGA video display without DRAM• US...

ZC0301 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZC0301
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Provide most cost effective PC camera solution with 28-pin package
• Support VGA CMOS sensors from Hyundai
• Support up to 15 fps VGA video display without DRAM
• USB Device Controller compliant with USB Protocol 1.1
• Support pan function based on 8x8 pixels unit
• Support 8-bit RGB Bayer pattern raw data input from CMOS image sensors
• Support 2-wire control interface to CMOS image sensor
• Support programmable color correction and gamma correction
• Support AE/AWB and programmable AE/AWB windows
• Support automatic CMOS sensor Reset Level Control
• Support automatic Gain Control
• Support auto/manual Histogram Equalization
• Support 2x2 Sub-Sampling
• Support ISO/IEC 10918-1 (JPEG) standard image compression
• Support JPEG File Interchange Format (JFIF) compressed image data output
• Support 2 AC and 2 DC Huffman code table
• Support 4 quantization tables for programmable image quality
• Adjustable compression ratio
• Support Custom-ID option

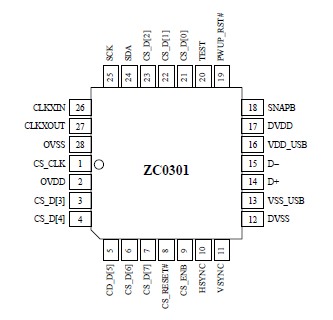

Pinout

Connection Diagram


Specifications

Ambient temperature 0 to 70
Storage temperature -40 to 125
DC supply voltage -0.3V to 3.6V
I/O pin voltage with respect to VSS -0.3V to VDD + 0.3V
