ZA3020

Features: ` 2A Output Current` 0.18 Internal Power MOSFET Switch` Stable with Low ESR Output Ceramic capacitors` Up to 95% Efficiency` 20A Shutdown Mode` Fixed 380kHz frequency` Thermal Shutdown` Cycle-by-cycle over current protection` Wide 4.75 to 25V operating input range` Output Adjustable from...

product image

ZA3020 Picture
See larger image
SeekIC No. : 004550498 Detail

ZA3020: Features: ` 2A Output Current` 0.18 Internal Power MOSFET Switch` Stable with Low ESR Output Ceramic capacitors` Up to 95% Efficiency` 20A Shutdown Mode` Fixed 380kHz frequency` Thermal Shutdown` Cy...

ZA3020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZA3020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2A Output Current
` 0.18 Internal Power MOSFET Switch
` Stable with Low ESR Output Ceramic capacitors
` Up to 95% Efficiency
` 20A Shutdown Mode
` Fixed 380kHz frequency
` Thermal Shutdown
` Cycle-by-cycle over current protection
` Wide 4.75 to 25V operating input range
` Output Adjustable from 1.22 to 21V
` Programmable under voltage lockout
` Frequency Synchronization Input
` Available in 8 pin SO package
` Evaluation Board Available


Application

· Distributed Power Systems
· Battery Charger
· Pre-Regulator for Linear Regulators

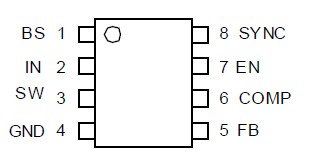

Pinout

Connection Diagram


Specifications

Supply Voltage (VIN) 28V
Switch Voltage (VSW) -1V to VIN +1V
Boost Voltage VSW + 6V
Feedback Voltage (VFB) 0.3 to 6V
Enable/UVLO Voltage (VEN) 0.3 to 6V
Comp Voltage (VCOMP) 0.3 to 6V
Sync Voltage (VSYNC) 0.3 to 6V
Junction Temperature 150
Lead Temperature 260
Storage Temperature -65 to +150



Description

The ZA3020 is a monolithic step down switch mode converter with a built in internal Power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation.

Current mode operation provides fast transient response and eases loop stabilization.

Fault condition protection includes cycle-bycycle current limiting and thermal shutdown. In shutdown mode the regulator draws 23A of supply current.

The ZA3020 requires a minimum number of readily available standard external components. A synchronization pin allows the part to be driven to 600KHz.
