Z86L79/Z86L80

Features: Three Standby Modes (Typical) STOP - 2mA HALT - 0.8 mA Low Voltage Standby (<VLV) Expanded Register File Control RegistersSpecial Architecture to Automate Both Generation and Reception of Complex Pulses or Signals: One Programmable 8-Bit Counter/Timer with Two Capture Registers O...

product image

Z86L79/Z86L80 Picture
See larger image
SeekIC No. : 004550380 Detail

Z86L79/Z86L80: Features: Three Standby Modes (Typical) STOP - 2mA HALT - 0.8 mA Low Voltage Standby (<VLV) Expanded Register File Control RegistersSpecial Architecture to Automate Both Generation and Recepti...

Z86L79/Z86L80 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Z86L79/Z86L80
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Three Standby Modes (Typical)
     STOP - 2mA
    HALT - 0.8 mA
   Low Voltage Standby (<VLV)

Expanded Register File Control Registers

Special Architecture to Automate Both Generation and Reception of Complex Pulses or Signals:
    One Programmable 8-Bit Counter/Timer with Two Capture Registers
    One Programmable 16-Bit Counter/Timer with One Capture Register
    Programmable Input Glitch Filter for Pulse Reception

Five Priority Interrupts

Low Voltage Detection and Standby Mode

Watch-Dog/Power-On Reset Circuits

Two Independent Comparators with Programmable
    Interrupt Polarity

On-Chip Oscillator that Accepts a Crystal, Ceramic
    Resonator, LC, RC, or External Clock Drive

Mask Selectable 200 kOhm Pull-Ups on Ports 0, 2, 3
   All Eight Port 2 Bits at One Time or Not
    Pull-Ups Automatically Disabled Upon  Selecting Individual Pins as Outputs.

Maskable SingleTrip Point Inputs on P00 Through P03.

Permanently Enabled WDT Option (Maskable)

28-Pin DIP and SOIC Packages


Pinout

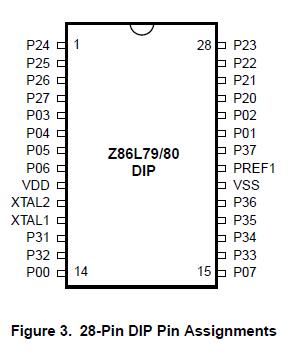

Connection Diagram


Specifications

Sym Description Min Max Units
VCC Supply Voltage (*) 0.3 +7.0 V
TSTG Storage Temp. 650

+1500

 C
TA Oper. Ambient
Temp.		   † C
Notes:
* Voltage on all pins with respect to GND.
† See Ordering Information.


Description

The Z86L79/L80 family of IR (InfraRed) Controllers are ROM-based members of the Z8® MCU single-chip microcontroller family with 237 bytes of general-purpose RAM.

The only differentiating factor between these two versions is the availability of ROM. Zilog's CMOS microcontrollers offer fast execution, efficient use of memory, sophisticated interrupts, input/output bit manipulation capabilities, automated pulse generation/reception, and easy hardware/ software system expansion along with cost-effective and low power consumption.

The Z86L7X architecture is based on Zilog's 8-bit microcontroller core with an Expanded Register File to allow access to register mapped peripherals, I/O circuits, and powerful counter/timer circuitry. The Z8® MCU offers a flexible I/O scheme, an efficient register and address space structure, and a number of ancillary features that are useful in many consumer, automotive, computer peripheral, and battery operated hand-held applications.
