Features: ` Standard Temperature (VCC = 3.5V to 5.5V)
` Extended Temperature (VCC = 4.5V to 5.5V)
` 28-Pin DIP/SOIC/PLCC Packages (E33/733/E34) 40-Pin DIP Package (E43/743/E44) 44-Pin PLCC/QFP Packages (E43/743/E44)
` Software Enabled Watch-Dog Timer (WDT)
` Push-Pull/Open-Drain Programmable on Port 0, Port 1, and Port 2
` Low-Power Consumption: 60 mW
` Programmable Crystal Oscillator, EPROM Protect,RAM Protect, Auto Latch Disable, Permanent WDT,32 KHz Oscillator, and EPROM /Test Mode Disable
` Fast Instruction Pointer: 0.6 s
` Two Standby Modes: STOP and HALT
` 24/32 Input and Output Lines
` Digital Inputs CMOS Levels, Schmitt-Triggered
` Software Programmable Low EMI Mode
` Two Programmable 8-Bit Counter/Timers Each with a 6- Bit Programmable Prescaler
` Six Vectored, Priority Interrupts from Six Different Sources
` Auto Latches
` Auto Power-On Reset (POR)
` Two Comparators
` On-Chip Oscillator that Accepts a Crystal, Ceramic Resonator, LC, RC, or External Clock Drive

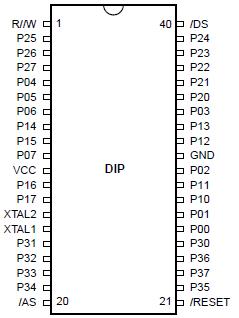

Pinout
Specifications
|
Parameter |
Min |
Max |
Units |
| Ambient Temperature under Bias |
-40 |
+105 |
C |
| Storage Temperature |
-65 |
+150 |
C |
| Voltage on any Pin with Respect to VSS [Note 1] |
-0.6 |
+7 |
V |
| Voltage on VDD Pin with Respect to VSS |
-0.3 |
+7 |
V |
| Voltage on XTAL1 and /RESET Pins with Respect to VSS [Note 2] |
-0.6 |
VDD+1 |
V |
| Total Power Dissipation |
|
1.21 |
W |
| Maximum Allowable Current out of VSS |
|
220 |
mA |
| Maximum Allowable Current into VDD |
|
180 |
mA |
| Maximum Allowable Current into an Input Pin [Note 3] |
-600 |
+600 |
A |
| Maximum Allowable Current into an Open-Drain Pin [Note 4] |
-600 |
+600 |
A |
| Maximum Allowable Output Current Sinked by Any I/O Pin |
|
25 |
A |
| Maximum Allowable Output Current Sourced by Any I/O Pin |
|
25 |
A |
1. This applies to all pins except XTAL pins and where otherwise noted.
2. There is no input protection diode from pin to VDD.
3. This excludes XTAL pins.
4. Device pin is not at an output Low state.DescriptionThe Z86E33/733/E34/E43/743/E44 8-bit CMOS One-Time Programmable (OTP) microcontrollers are members of Zilog's Z8® single-chip microcontroller family featuring enhanced wake-up circuitry, programmable Watch-Dog Timers,
Low Noise EMI options, and easy hardware/software system expansion capability.
Four basic address spaces support a wide range of memory configurations. The designer has easy access to register
mapped peripheral and I/O circuits. For applications demanding powerful I/O capabilities, the Z86E33/733/E34 have 24 pins and the Z86E43/743/E44 have 32 pins of dedicated input and output. These lines are grouped into four ports, eight lines per port, and are configurable under software control to provide timing, status signals,and parallel I/O with or without handshake, and address/ data bus for interfacing external memory.
Notes: All Signals with a preceding front slash, "/", are active Low, e.g., B//W (WORD is active Low); /B/W (BYTE is active Low, only).
