Product Details

Description



Features:

• Four-channel, 8-bit sigma delta analog-to-digital (A/D) converter with external voltage references (not available in the 28-pin configuration)
• Two independent analog comparators
• Controlled current output
• 489 bytes of RAM
233 bytes of general-purpose register-based RAM
256 bytes of RAM mapped into the program memory space that can be used as data RAM or executable RAM
• 32 Kbytes of OTP memory (Z86D99X)
• 16 Kbytes of ROM (Z86L99X)




Pinout

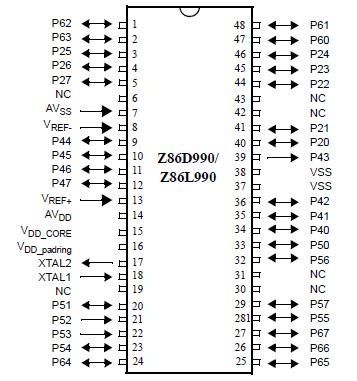

Connection Diagram


Specifications

Description
Symbol
Value
Unit
Supply Voltage (*)
VMAX
0.3 to +7.0
V
Storage Temp.
TSTG
65 +150
°C
Oper. Ambient Temp
TA
†
°C
Minimum RAM Voltage
VRAM
1.0
V
Note:
*Voltage on all pins with respect to GND.
†See "Ordering Information" on page 95.
** Estimated value, not tested.
