Product Details

Description



Features:

1. Automatic Gain Control (AGC) function
2. Filter function
3. Peak hold function
4. ADC (Analog Digital Converter) function
5. Low Power Consumption Operation mode 72mW(typ.)
6. CMOS technology
7. 64-pin QFP
8. Single +5 volt supply

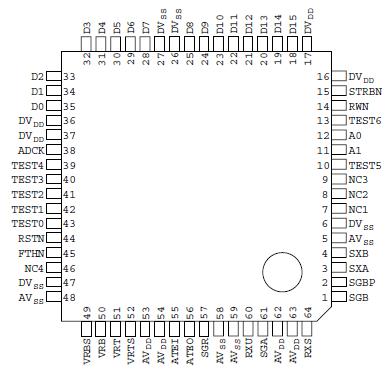

Pinout

Connection Diagram


Specifications

Parameters Symbol Min. Max. Units
Supply Voltage (Digital) DVDD -0.3 +7.0 V
Supply Voltage (Analog) AVDD -0.3 +7.0 V
Input Voltage (Digital) DVIN DVSS -0.3 DVDD+0.3 V
Input Voltage (Analog) AVIN AVSS -0.3 AVDD+0.3 V
Output Voltage (Digital) DVOUT DVSS -0.3 DVDD+0.3 V
Output Voltage (Analog) AVOUT AVSS -0.3 AVDD+0.3 V
Power Dissipation PD   400 mW
Operating Temperature TOP �-20 +70
Storage Temperature TST �-55 +125



Description

YTD427 is a communication LSI which provides the ISDN subscriber interface (two-wire metallic time compression multiplexing operation). It is capable of providing the electric characteristics conforming to TTC Standard JT-G961.

A DSU (Digital Service Unit) can easily be constructed by combining with YTD426B.
