YS243DS-12

Features: •Input voltage range: 18 to 36V DC•Output: +12V, 250mA (output power: 3W)•Thin-profile and lightweight design•Insulation between input and output: 500V DC, 1min•Built-in over-current protection circuitApplicationBest suited to onboard power supplies in FA, O...

product image

YS243DS-12 Picture
See larger image
SeekIC No. : 004550021 Detail

YS243DS-12: Features: •Input voltage range: 18 to 36V DC•Output: +12V, 250mA (output power: 3W)•Thin-profile and lightweight design•Insulation between input and output: 500V DC, 1minR...

YS243DS-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YS243DS-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Input voltage range: 18 to 36V DC
•Output: +12V, 250mA (output power: 3W)
•Thin-profile and lightweight design
•Insulation between input and output: 500V DC, 1min
•Built-in over-current protection circuit


Application

Best suited to onboard power supplies in FA, OA, and control equipment.


Pinout

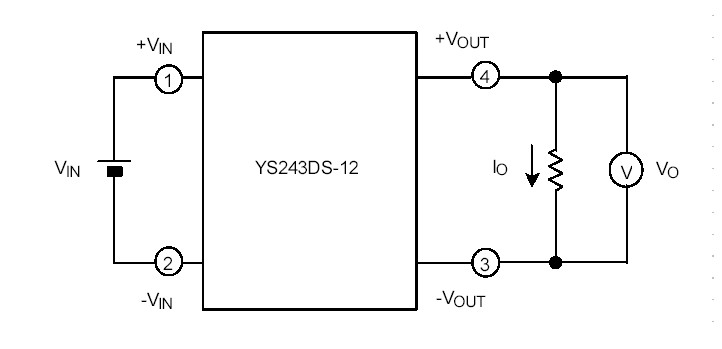

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
VIN
 Input voltage
Between: pins 2 and 1
36
V
IO
 Output current
Between pins 4 and 3
250
mA
PO
 Output power
-
3
W
Topr
Operating temperature
No condensation (*1)
-10 ~ +70
Tstg
 Storage temperature
No condensation
-20 ~ +85
Viso
 Input-output isolation voltage
DC, 1min
500
V
(*1) Please refer to derating curve.


Description

The YS243DS-12 is a thin-profile and lightweight single-output DC-DC converter. Its output power is 3W and the input is insulated from the output. With an over-current protection circuit built-in, the YS243DS-12 is an optimum solution for onboard power supplies in FA, OA, and control equipment.
