Product Details

Description



Features:

•Input voltage range: 18 to 36V DC
•Output: ±12V, 130mA (output power: 3.12W)
•Thin-profile and lightweight design
•Insulation between input and output: 500V DC, 1min
•Built-in over-current protection circuit


Application

Best suited to onboard power supplies in FA, OA, and control equipment.


Pinout

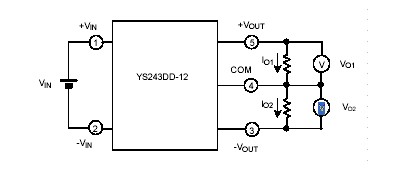

Connection Diagram


Specifications

Symbol
 Parameter Conditions
Ratings
Unit
VIN
 Input voltage Between: pins 2 and 1
36
-5V
IO1
 Output current Between pins 5 and 4
130
mA
IO2
 Between pins 4 and 3
130
PO
 Output power -
3.12
W
Topr
 Operating temperature No condensation (*1)
-10 ~ +70
Tstg
 Storage temperature No condensation
-20 ~ +85
Viso
 Input-output isolation
voltage		 DC, 1min
500

V
(*1) Please refer to derating curve.


Description

The YS243DD-12 is a thin-profile and lightweight dual-output DC-DC converter. Its output power is 3W and the input is insulated from the output. With an over-current protection circuit built-in, the YS243DD-12 is an optimum solution for onboard power supplies in FA, OA, and control equipment.
