Product Details

Description



Features:

• Input voltage range: 9 to 18V DC
• Output: +12V, 250mA (output power: 3W)
• Thin-profile and lightweight design
• Insulation between input and output: 500V DC, 1min
• Built-in over-current protection circuit


Application

Best suited to onboard power supplies in FA, OA, and control equipment.


Pinout

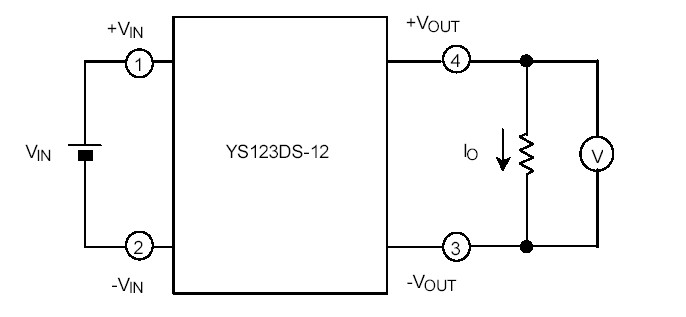

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VIN
 Input voltage
Between: pins 2 and 1
18
V
IO
 Output current
Between pins 4 and 3
250
mA
PO
 Output power
-
3
W
Topr
 Operating temperature
No condensation (*1)
-10 ~ +70
Tstg
 Storage temperature
No condensation
-20 ~ +85
Viso
 Input-output isolation voltage
DC, 1min
500
V
(*1) Please refer to derating curve.


Description

The YS123DS-12 is a thin-profile and lightweight single-output DC-DC converter. Its output power is 3W and the input is insulated from the output. With an over-current protection circuit built-in, the YS123DS-12 is an optimum solution for onboard power supplies in FA, OA, and control equipment.
