YMU762

· Simultaneous generation of up to 40 tones: FM + Wave Table stereophonic hybrid synthesizer.
· Polyphonic synthesizer specification.
· Has built-in default voices for FM and Wave Table synthesizers in the ROM, and the voices can be downloaded to RAM.
· Fundamental waveforms for FM and algorithm are improved compared with YMU759 (MA-2), and voice parameters of detune etc. are added.
· Stream replay with ADPCM / PCM (shared use of Wave Table section).
· Software interrupt mechanism for external synchronization.
· Equipped with 8 bit parallel I/F for control from CPU.
· Equipped with speaker amplifier and equalizer circuit.
· Equipped with vibration control circuit, and LED lighting control circuit.
· Has built-in PLL to support inputting of master clock up to 20 MHz.
· Contains a 16-bit stereophonic D/A converter.
· Equipped with a stereophonic output terminal for headphone.
· Supports power down mode.
· Digital power supply: 2.7V to 3.3V (Typ 3.0V)
· Analog power supply: 2.7V to 4.5V (Typ 3.6V)

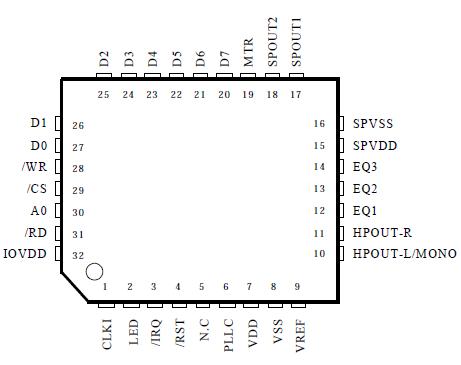

· 32-pin QFN plastic package

MA-3 is a synthesizer LSI for mobile phones that realize advanced game sounds.

This LSI MA-3 has a built-in speaker amplifier, and thus, is an ideal device for outputting sounds that are used by mobile phones in addition to game sounds and ringing melodies that are replayed by a synthesizer.

The MA-3 synthesizer section adopts "stereophonic hybrid synthesizer system" that are given advantages of both FM synthesizers and Wave Table synthesizers to allow simultaneous generation of up to thirty two FM voices and eight
Wave Table voices.

Since FM synthesizer MA-3 is able to present countless voices by specifying parameters with only several tens of bytes, memory capacity and communication band can be saved, and thus, the device exhibits the features in operating environment of mobile phones such as allowing distribution of arbitrary melodies with voices.

On the other hand, Wave Table synthesizer MA-3 can pronounce the voice built in ROM and arbitrary ADPCM/PCM voices from sequencer by the download of the melody with voices etc.

MA-3 has a built-in hardware sequencer that helps to realize complex play without heavily loading the host CPU.

The device MA-3 also has a built-in circuit for controlling vibrators and LEDs synchronizing with play of music.
