YMF754

Features: • PCI 2.2 Compliant• PC98 / PC99 specification Compliant• PCI Bus Power Management rev. 1.0 Compliant (Support D0, D2 and D3 state)• Supports clock run• PCI Bus Master for PCI Audio True Full Duplex Playback and Capture with different Sampling Rate Maximum 6...

product image

YMF754 Picture
SeekIC No. : 004549992 Detail

YMF754: Features: • PCI 2.2 Compliant• PC98 / PC99 specification Compliant• PCI Bus Power Management rev. 1.0 Compliant (Support D0, D2 and D3 state)• Supports clock run• PCI B...

floor Price/Ceiling Price

Part Number:
YMF754
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• PCI 2.2 Compliant
• PC98 / PC99 specification Compliant
• PCI Bus Power Management rev. 1.0 Compliant (Support D0, D2 and D3 state)
• Supports clock run
• PCI Bus Master for PCI Audio
  True Full Duplex Playback and Capture with different Sampling Rate
  Maximum 64-voice XG capital Wavetable
  Synthesizer including GM compatibility
  DirectSound Hardware Acceleration
  DirectMusic Hardware Acceleration
  Downloadable Sound (DLS) level-1
• Legacy Audio compatibility
  FM Synthesizer
  Hardware Sound Blaster Pro compatibility
  MPU401 UART mode MIDI interface Joystick
• Supports PC/PCI and Distributed DMA for legacy
  DMAC (8237) emulation
• Supports Serialized IRQ
• Supports I2S serial input for Zoomed Video Port
• Supports Consumer IEC958 Port (SPDIF In/Out)
• Supports direct recording function for SPDIF In
• Capability for using SPDIF In and Zoomed Video Port at the same time.
• Supports AC'97 Interface (AC-Link) Revision 2.1
• AC'97 Digital Docking
• Supports 4-Channel Speaker
• Hardware Volume Control
• EEPROM Interface
• Single Crystal operation (24.576MHz)
• Power supply: 3.3V for I/O (5V tolerant),
2.5V for Internal core logic
• 128-pin LQFP YMF754-V : 0.5mm pin pitch
  YMF754-R : 0.4mm pin pitch



Pinout

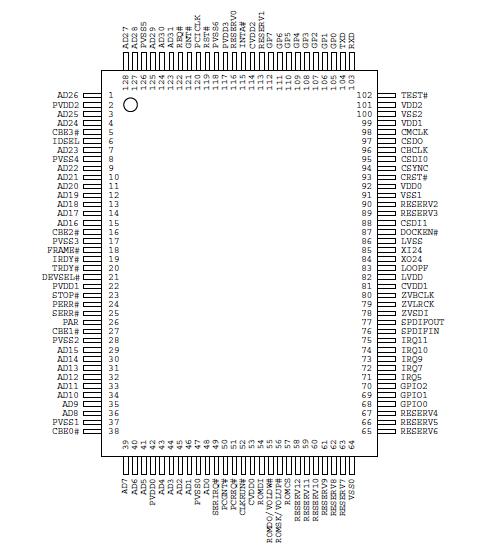

  Connection Diagram


Specifications

Item Symbol Min. Max. Unit
Power Supply Voltage (PVDD, VDD) VDD3 -0.3 4.6 V
Power Supply Voltage (CVDD, LVDD) VDD2 -0.3 3.6 V
Input Voltage VIN -0.3 5.75 V
Operating Ambient Temperature TOP 0 70 °C
Storage Temperature TSTG -50 125 °C

Note : PVSS=VSS=LVSS=0[V]




Description

YMF754 (DS-1E) is a high performance audio controller for the PCI Bus. DS-1E consists of two separated functional blocks. One is the PCI Audio block and the other is the Legacy Audio block.

YMF754 PCI Audio block provides 64-voice XG wavetable synthesizer with reverb and variation by using the software driver from YAMAHA. It also supports DirectSound hardware accelerator, Downloadable Sound (DLS) and DirectMusic accelerator.

YMF754 Legacy Audio block supports FM synthesizer, Sound Blaster Pro, MPU401 UART mode and Joystick function in order to provide hardware compatibility for numerous PC games on real DOS without any software driver.

YMF754 DS-1E supports the connection to AC'97 which provides high quality DAC, ADC and analog mixer, and it can connect two AC'97s. In addition, it supports consumer IEC958, Digital Audio Interface (SPDIF In/Out), to connect external audio equipment by digital. In addition to support the same functions of YMF744B (DS-1S), DS-1E adds direct recording function for SPDIF In, and realizes to use SPDIF In and Zoomed Video Port at the same time. And, DS-1E is featured with the capability of dramatically reducing power consumption at normal operation.
