YMF753

Features: • AC'97 Revision 2.2 Compliant• Exceeds PC99 / PC2001 Analog Performance Requirement (Mobile PC Audio Performance Compliant when analog low power supply is used.)• Analog Inputs : - 4 Stereo Inputs: LINE, CD, VIDEO, AUX - 2 Monaural Inputs: Speakerphone and PC BEEP Inpu...

product image

YMF753 Picture
See larger image
SeekIC No. : 004549991 Detail

YMF753: Features: • AC'97 Revision 2.2 Compliant• Exceeds PC99 / PC2001 Analog Performance Requirement (Mobile PC Audio Performance Compliant when analog low power supply is used.)• Analog...

YMF753 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YMF753
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• AC'97 Revision 2.2 Compliant
• Exceeds PC99 / PC2001 Analog Performance Requirement
  (Mobile PC Audio Performance Compliant when analog low power supply is used.)
• Analog Inputs :
  - 4 Stereo Inputs: LINE, CD, VIDEO, AUX
  - 2 Monaural Inputs: Speakerphone and PC BEEP Inputs
  - 2 Independent Microphone Inputs
• PC BEEP can directly output to Line Out
• Internal +20dB amplifier circuitry for microphone
• Analog Outputs : Stereo LINE Output, True LINE Level and Monaural Output
• Supports Zoomed Video Port
• Supports Consumer IEC958 Output Port (SPDIF OUT)
• SPDIF Output for AC'97 Revision 1.0 Compliant
• Different audio data from AC-Link can be output to SPDIF and Line Out
• Supports 3D Enhancement (Wide Stereo), and Bass / Treble control
• Multiple CODEC Capability
• Programmable Power Down Mode
• Supports EAPD (External Amplifier Power Down)
• Power Supplies : Analog 4.3V to 5.0V, Digital 3.3V or 5.0V
• 48-Pin SQFP Package (YMF753-S)


Pinout

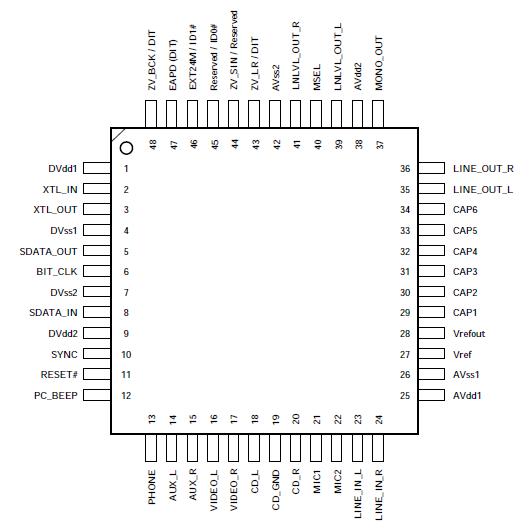

Connection Diagram


Specifications

Parameter Symbol Min. Max. Unit
Analog Supply Voltage AVDD -0.3 7.0 V
Digital Supply Voltage DVDD -0.5 7.0 V
Analog Input Voltage VINA -0.5 AVDD + 0.5 V
Digital Input Voltage VIND -0.5 DVDD + 0.5 V
Ambient Temperature TOP 0 70 °C
Storage Temperature TSTG -50 125 °C

Note) DVSS = AVSS = 0V




Description

YMF753 is an AC'97 Audio CODEC LSI, which is fully compliant with the industry standard "Audio CODEC '97" component specification (Revision 2.2).

Different from former AC'97, YMF753 supports new features like SPDIF OUT and Zoomed Video Port. Without using a digital controller, these new features can be enhanced in the AC'97 sound system that has an ICH controller built-in chipset.

YMF753 Low power consumption is supported not only in the normal mode but can be controlled in the power-down mode.
