Product Details

Description

Features:

• AC'97 Revision 2.1 Compliant
• Exceeds PC98 / PC99 Audio Performance Requirements
• Analog Inputs :
- 4 Stereo Inputs: LINE, CD, VIDEO, AUX
- 2 Monaural Inputs: Speakerphone and PC BEEP Inputs
- 2 Independent Microphone Inputs
• PC BEEP can directly output to Line Out
• Internal +20dB amplifier circuitry for microphone
• Analog Outputs : Stereo LINE Output, True LINE Level and Monaural Output
• Supports Zoomed Video Port
• Supports Consumer IEC958 Output Port (SPDIF OUT)
• Supports 3D Enhancement (Wide Stereo), and Bass / Treble control
• Multiple CODEC Capability
• Programmable Power Down Mode
• Supports EAPD (External Amplifier Power Down)
• Power Supplies : Analog 5.0V, Digital 3.3V or 5.0V
• 48-Pin SQFP Package (YMF743-S)

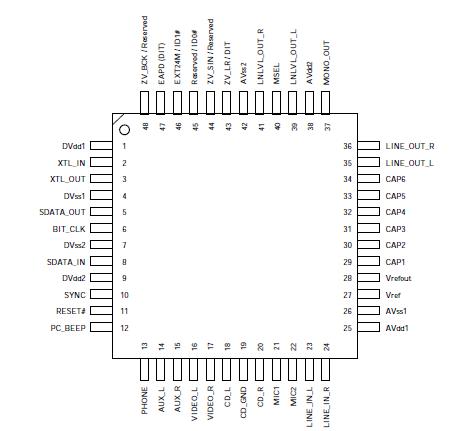

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Min.	Max.	Unit
Analog Supply Voltage	AV_DD	-0.3	7.0	V
Digital Supply Voltage	DV_DD	-0.5	7.0	V
Analog Input Voltage	V_INA	-0.5	AV_DD + 0.5	V
Digital Input Voltage	V_IND	-0.5	DV_DD + 0.5	V
Ambient Temperature	T_OP	0	70
Storage Temperature	T_STG	-50	125

Note) DV_SS = AV_SS = 0V
