Product Details

Description

Features:

`Low voltage operation: V_opr=1.8~5.0V
`Decreasing external component
`Built in compressor and expander mute circuit
`Unity gain level set a 100mVrms
`Response time adjustable

Pinout

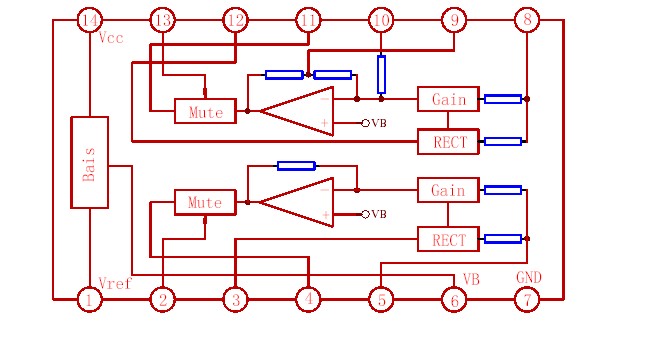

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Supply Voltage	V_cc	10	V
Power Dissipation	P_D	410	mW
Operating Temperature	T_opr	-20~+75
Storage Temperature	T_stg	-55~+150

Description

The YD5020 contains two variable gain circuits configured for compressing and expanding the dynamic range of an audio signal. One circuit is configured as an expander, while the other circuit can be configured as a compressor or expander. Each YD5020 circuit has a full wave rectifier to provide average value information to a variable gain cell located in either the input stage or the feedback path.
