Product Details

Description



Features:

·V(BR) 1200 to 1500 V
·IH > 175 mA
·IGT < 2 mA

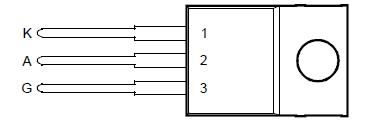

Pinout

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Crest working off-state voltage (Full wave rectified 50 Hz a.c.) VDWM 375 V
Peak reverse gate voltage VRGM 6 V
On-state current - continuous
- repetitive peak
- non-repetitive peak		 IT
ITRM
ITSM		 1.5
2
10		 A
Peak gate current IGRM 0.5 A
Average gate power PG(av) 0.3 W
Operating case temperature range TC -5 to +85 °C
Storage temperature range Tstg -10 to +110 °C
Lead temperature during soldering 1.6 mm from the case for 10 seconds Tlead 230 °C



Description

This Y1112 product is intended for use as a T8/T12 fluorescent tube starter switch on 200-240 V a.c. supplies with tube sizes up to 5ft with leading and lagging ballast circuits.
