XS170: Solid State Relays Integrated

XS170 Data Sheet

Get Latest Price

Part Number:: XS170
Mfg:: Clare
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Product Type :	PCB Mount	Load Voltage Rating :	350 A
Load Current Rating :	100 mA	Package / Case :	SIP-8

Description

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Load Current Rating : 100 mA
Package / Case : SIP-8
Load Voltage Rating : 350 A

Features:

• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available

Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls

Pinout

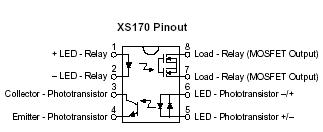

Connection Diagram

Specifications

PARAMETER	Min	Typ	Max	Units
Input Power Dissipation	-	-	150¹	mW
Input Control Current Peak (10ms)	-	-	50 1	mA A
Reverse Input Voltage	-	-	5	V
Total Power Dissipation	-	-	800²	mW
Isolation Voltage Input to Output	3750	-	-	VRMS
Operational Temperature	-40	-	+85
Storage Temperature	-40	-	+125
Soldering Temperature DIP Package Flatpack/Surface Mount Package (10 Seconds Max.)	- -	- -	+260 +220

Description

XS170 is a 350V, 100mA, 50Ω 1-Form-A relay with an optocoupler in a single package. XS170 provides an economical solution for cost sensitive applications. Description

Parameters:

Technical/Catalog Information	XS170
Vendor	Clare
Category	Integrated Circuits (ICs)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	XS170 XS170
