XRT75L00

Features: · On chip Clock and Data Recovery circuit for high input jitter tolerance.· Meets E3/DS3/STS-1 Jitter Tolerance Requirements.· Detects and Clears LOS as per G.775.· Meets Bellcore GR-499 CORE Jitter Transfer Requirements.· Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cab...

product image

XRT75L00 Picture
See larger image
SeekIC No. : 004549466 Detail

XRT75L00: Features: · On chip Clock and Data Recovery circuit for high input jitter tolerance.· Meets E3/DS3/STS-1 Jitter Tolerance Requirements.· Detects and Clears LOS as per G.775.· Meets Bellcore GR-499 C...

XRT75L00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XRT75L00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· On chip Clock and Data Recovery circuit for high input jitter tolerance.
· Meets E3/DS3/STS-1 Jitter Tolerance Requirements.
· Detects and Clears LOS as per G.775.
· Meets Bellcore GR-499 CORE Jitter Transfer Requirements.
· Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cable attenuation.
· Compliant with jitter transfer template outlined in ITU G.751, G.752, G.755 and GR-499-CORE,1995 standards.
· Meets ETSI TBR 24 Jitter Transfer Requirements.
· On chip B3ZS/HDB3 encoder and decoder that can be either enabled or disabled.
· On-chip clock synthesizer provides the appropriate rate clock from a single 12.288 MHz Clock.
· Provides low jitter output clock.




Application

· E3/DS3 Access Equipment.
· DSLAMs.
· Digital Cross Connect Systems.
· CSU/DSU Equipment.
· Routers.
· Fiber Optic Terminals.




Pinout

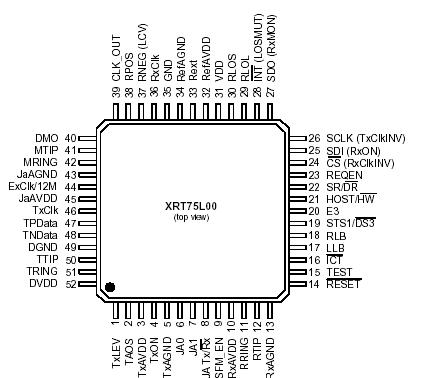

Connection Diagram




Specifications

Specifications
No. ofCH 1
DataRate(s) DS3, E3, STS-1
Clk Rec Yes
SH/LH n/a
Temp.Range Ind.
OpPwr Sup/Max Cur 3V ±5%
Pkgs TQFP-52


SYMBOL PARAMETER MIN MAX UNITS COMMENTS
VDD Supply Voltage -0.5 6.0 V Note 1
VIN Input Voltage at any Pin -0.5 5+0.5 V Note 1
IIN Input current at any pin 100 mA Note 1
STEMP Storage Temperature -65 150 Note 1
ATEMP Ambient Operating Temperature -40 85 linear airflow 0 ft./min
Theta JA Thermal Resistance 20 /W linear air flow 0ft/min
ThetaJC 6 /W
MLEVL Exposure to Moisture 5 level EIA/JEDEC
JESD22-A112-A
ESD ESD Rating 2000 2000 V Note 2





Description

The XRT75L00 is a single-channel fully integrated Line Interface Unit (LIU) with Jitter Attenuator for E3/ DS3/STS-1 applications. It incorporates an independent Receiver, Transmitter and Jitter Attenuator in a single 52 pin TQFP package.

The XRT75L00 can be configured to operate in either E3 (34.368 MHz), DS3 (44.736 MHz) or STS-1 (51.84 MHz) modes. The transmitter can be turned off (tristated) for redundancy support and for conserving power.

The XRT75L00's differential receiver provides high noise interference margin and is able to receive the data over 1000 feet of cable or with up to 12 dB of cable attenuation.

The XRT75L00 incorporates an advanced crystalless jitter attenuator that can be selected either in the transmit or receive path. The jitter attenuator performance meets the ETSI TBR-24 and Bellcore GR-499 specifications.

The XRT75L00 provides both Serial Microprocessor Interface as well as Hardware mode for programming and control.

The XRT75L00 supports local, remote and digital loop-backs. The XRT75L00 also contains an onboard Pseudo Random Binary Sequence (PRBS) generator and detector with the ability to insert and detect single bit error.
