Features: • 8-Bit Resolution• Up to 20 MHz Sampling Rate• Internal S/H Function• Single Supply: 5V• VIN DC Range: 0V to VDD• VREF DC Range: 1V to VDD• Low Power: 75mW typ. (excluding reference)• Latch-Up Free• ESD Protection: 2000V Minimum̶...
XRD8785: Features: • 8-Bit Resolution• Up to 20 MHz Sampling Rate• Internal S/H Function• Single Supply: 5V• VIN DC Range: 0V to VDD• VREF DC Range: 1V to VDD• Low P...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $100.8 - 108 / Piece
Data Conversion IC Development Tools XRD8799 EVAL BOARD
Specifications | |
Res (Bits) | 8 |
Spd | 15-MSPS |
Max P P Con. (mW) | 75mW |
No. ofCH | 1 |
Track/Hold | Yes |
Vref | 1 to 5V |
mP Bus P=Parallel S=Serial | 8, P |
3V VerAvail | Yes |
Pkgs | PDIP-24, SOIC-24, SSOP-24 |
VDD to GND ......................................................... 7V
VRT & V RB.......................... VDD +0.5 to GND 0.5V
VIN ..................................... VDD +0.5 to GND 0.5V
All Inputs ............................ VDD +0.5 to GND 0.5V
All Outputs .......................... VDD +0.5 to GND 0.5V
Storage Temperature .........................65 to +150
Lead Temperature (Soldering 10 seconds) .....+300
Package Power Dissipation Rating @ 75
PDIP, SOIC, SOP ........................................... 675mW
Derates above 75 .................................... 12mW/
NOTES:
1. Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2. Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms.
3. VDD refers to AVDD and DVDD. GND refers to AGND and DGND.

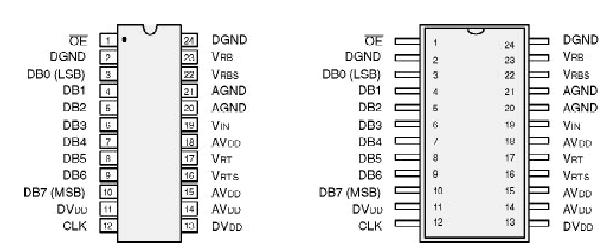

The XRD8785 is an 8-bit Analog-to-Digital Converter. Designed using an advanced 5V CMOS process, this part offers excellent performance, low power consumption and latch-up free operation.
This device uses a two-step flash architecture to maintain low power consumption at high conversion rates. The input circuitry of the XRD8785 includes an on-chip S/H function which allows the user to digitize analog input signals between AGND and AVDD. Careful design and chip layout have achieved a low analog input capacitance. This reduces "kickback" and eases the requirements of the buffer/amplifier used to drive the XRD8785.
The designer can choose the internally generated reference voltages by connecting VRB to VRBS and VRT to VRTS, or provide external reference voltages to the VRB and VRT pins. The internal reference generates 0.6 V at VRB and 2.6 V at VRT. Providing external reference voltages allows easy interface to any input signal range between AGND and AVDD. This also allows the system to adjust these voltages to cancel zero scale and full scale errors, or to change the input range as needed.
The device operates from a single +5 V supply. Power consumption is 85 mW at FS = 20MHz.
Specified for operation over the commercial / industrial (-40 to +85°C) temperature range, the XRD8785 is available in Plastic dual-in-line (PDIP) and Surface Mount (SOIC) packages in EIAJ and JEDEC.
