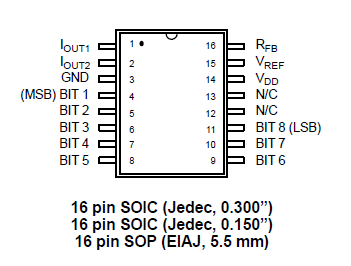

XRD7523

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +17 V
Digital Input Voltage to GND GND 0.5 to VDD +0.5 V
IOUT1, IOUT2 to GND . . . . . . . . . . . . . . .. . 0.5 to 6.5 V
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +25 V
VRFB to GND . . . . . . . . . . . . . . . . . . . . . . . . .. . . .. +25 V
Storage Temperature . . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 seconds) . +300°C
Package Power Dissipation Rating to 75°C
CDIP, PDIP, SOIC . . . . . . . . . . . . . ......... . . .. . . . 800mW
Derates above 75°C . . . . . . . . .. . . . .... . . .. . 11mW/°C

NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating
conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies.

The MP7523/XRD7523 is a low cost multiplying Digital-to- Analog Converter. The device uses an advanced thin-film-on- CMOS technology to provide 8-bit resolution with accuracy to 10-bits and very low power dissipation.

The MP7523/XRD7523's excellent multiplying characteristics and low cost allow it to be used in a wide ranging field of applications such as: low noise audio gain control, CRT character generation, motor speed control, digitally controlled attenuators, etc.
