XR16V2550

Features: •2.25 to 3.6 Volt Operation•5 Volt Tolerant Inputs•Pin-to-pin compatible to ST16C2550, XR16C2550 and XR16L2550 in the 48-TQFP package•Two independent UART channels-Register set compatible to XR16L2550-Data rate of up to 16 Mbps at 3.3 V, and 12.5 Mbps at 2.5 V wit...

product image

XR16V2550 Picture
See larger image
SeekIC No. : 004549202 Detail

XR16V2550: Features: •2.25 to 3.6 Volt Operation•5 Volt Tolerant Inputs•Pin-to-pin compatible to ST16C2550, XR16C2550 and XR16L2550 in the 48-TQFP package•Two independent UART channels-...

XR16V2550 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XR16V2550
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•2.25 to 3.6 Volt Operation
•5 Volt Tolerant Inputs
•Pin-to-pin compatible to ST16C2550, XR16C2550 and XR16L2550 in the 48-TQFP package
•Two independent UART channels
-Register set compatible to XR16L2550
-Data rate of up to 16 Mbps at 3.3 V, and 12.5 Mbps at 2.5 V with 4X sampling rate
-Fractional Baud Rate Generator
-Transmit and Receive FIFOs of 16 bytes
-Selectable TX and RX FIFO Trigger Levels
-Automatic Hardware (RTS/CTS) Flow Control
-Automatic Software (Xon/Xoff) Flow Control
-Wireless Infrared (IrDA 1.0) Encoder/Decoder
-Automatic sleep mode
-Full modem interface
•Device Identification and Revision
•Crystal oscillator (up to 32MHz) or external clock (up to 64MHz) input
•48-TQFP and 32-QFN packages




Application

•Portable Appliances
•Telecommunication Network Routers
•Ethernet Network Routers
•Cellular Data Devices
•Factory Automation and Process Controls




Pinout

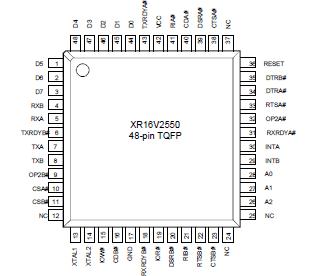

Connection Diagram




Specifications

Specifications
CH 2
CPUInterface Intel
Data Rate@5/3.3/2.5V na/16/12.5
Tx/RxFIFO(Bytes) 16/16
Tx/RxFIFOCtrs No
Tx/RxFIFOINT Trig 4 Levels/ 4 Levels
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.25-3.6
Pkgs TQFP-48, QFN-32


Power Supply Range ......................7 Volts
Voltage at Any Pin ............GND-0.3V to 7V
Operating Temperature ......-40 to +85
Storage Temperature .......-65 to +150
Package Dissipation .....................500 mW




Description



The XR16V25501 (V2550) is a high performance dual universal asynchronous receiver and transmitter (UART) with 16 bytes TX and RX FIFOs. The device operates from 2.25 to 3.6 volts with 5 Volt tolerant inputs and is pin-to-pin compatible to Exar's ST16C2550 and XR16C2550. The XR16V2550 register set is compatible to the ST16C2550 and the XR16L2550. It supports Exar's enhanced features of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt with 4X sampling clock. The V2550 is available in 48-pin TQFP and 32-pin QFN packages.

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.

NOTE: 1Covered by U.S. Patent #5,649,122

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
