XR16L2750

Features: ` 2.25 to 5.5 Volt Operation` 5 Volt Tolerant Inputs` Pin-to-pin compatible to Exar's ST16C2550 and TI's TL16C752B on the 48-TQFP package` Pin alike XR16C2850 48-TQFP package but without CLK8/16, CLKSEL and HDCNTL inputs` Two independent UART channels`Reg set compatible to 16C2550 and 16...

product image

XR16L2750 Picture
See larger image
SeekIC No. : 004549167 Detail

XR16L2750: Features: ` 2.25 to 5.5 Volt Operation` 5 Volt Tolerant Inputs` Pin-to-pin compatible to Exar's ST16C2550 and TI's TL16C752B on the 48-TQFP package` Pin alike XR16C2850 48-TQFP package but without C...

XR16L2750 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XR16L2750
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2.25 to 5.5 Volt Operation
` 5 Volt Tolerant Inputs
` Pin-to-pin compatible to Exar's ST16C2550 and TI's TL16C752B on the 48-TQFP package
` Pin alike XR16C2850 48-TQFP package but without CLK8/16, CLKSEL and HDCNTL inputs
` Two independent UART channels
`Reg set compatible to 16C2550 and 16C2850
` Up to 6.25 Mbps at 5 Volt, 4 Mbps at 3.3 Volt, and 3 Mbps at 2.5 Volt with 8X sampling rate
`Transmit and Receive FIFOs of 64 bytes
` Programmable TX and RX FIFO Trigger Levels
`Transmit and Receive FIFO Level Counters
`Automatic Hardware (RTS/CTS) Flow Control
`Selectable Auto RTS Flow Control Hysteresis
`Automatic Software (Xon/Xoff) Flow Control
`Automatic RS-485 Half-duplex Direction Control Output via RTS#
` Wireless Infrared (IrDA 1.0) Encoder/Decoder
`Automatic sleep mode
`Full modem interface
`Device Identification and Revision
`Crystal oscillator or external clock input
`Industrial and commercial temperature ranges
`48-TQFP and 44-PLCC packages




Application

· Portable Appliances
· Telecommunication Network Routers
· Ethernet Network Routers
· Cellular Data Devices
· Factory Automation and Process Controls




Pinout

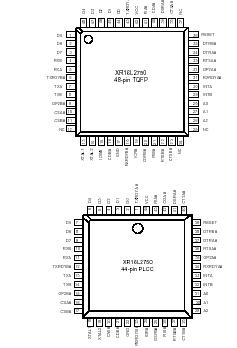

Connection Diagram




Specifications

Power Supply Range 7 Volts
Voltage at Any Pin GND-0.3V to 7V
Operating Temperature -40o to +85
Storage Temperature -65o to +150
Package Dissipation 500 mW

Specifications
CH 2
CPUInterface Intel
Data Rate@5/3.3/2.5V 6.2/4.0/3.0 @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.25-5.5
Pkgs PLCC-44, TQFP-48





Description


The XR16L2750 UART (Universal Asynchronous Receiver Transmitter) is the industry's first dual-channel, 2.25V to 5.5V supply product with 5V tolerant inputs. The 2750 is pin and function compatible to Exar's ST16C2550 and pin alike to XR16C2850.

Several device family features can enable more data byte transfer per interrupt service -- this can lower CPU bandwidth requirements. The programmable TX and RX FIFO interrupt trigger levels, and FIFO counters, further reduce the interrupt service period. Additionally, the automatic hardware (RTS/CTS) and software (Xon/Xoff) flow control (with auto RTS hysteresis) eliminates data loss and re-transmission, which can increase data throughput.

Data rates of up to 6.125Mbps at 5V, 4Mbps at 3.3V and 3Mbps at 2.5V are supported at 8x sampling clock rate. The device supports on-chip crystal oscillator or external clock inputs. The XR16L2750 is offered in a low profile 48-pin TQFP and 44-PLCC packages in commercial and industrial temperature grade.

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
