Product Details

Description



Features:

· Excellent Temperature Stability (20ppm/°C)
· Linear Frequency Sweep
· Adjustable Duty Cycle (0.1% to 99.9%)
· Two or Four Level FSK Capability
· Wide Sweep Range (1000:1 Minimum)
· Logic Compatible Input and Output Levels
· Wide Supply Voltage Range (4V to 13V)
· Low Supply Sensitivity (0.1% /V)
· Wide Frequency Range (0.01Hz to 1MHz)
· Simultaneous Triangle and Squarewave Outputs


Application

` FSK Generation
` Voltage and Current-to-Frequency Conversion
` Stable Phase-Locked Loop
` Waveform Generation
   Triangle, Sawtooth, Pulse, Squarewave
` FM and Sweep Generation

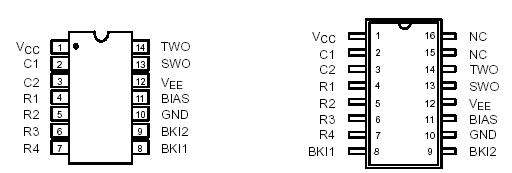

Pinout

Connection Diagram


Specifications

Power Supply  . . . . . . . . . . . . . . . . . . . . . . . . .26V
Storage Temperature Range . . . ..-65  to +150
Power Dissipation (package limitation)
Ceramic package . . . . . . . . . . . . . . . . . . . .750mW
Derate above +25. . . . . . . . . . . . . . . . .6mW/
Plastic package  . . . . . . . . . . . . . . . . . . . . .625mW
Derate above +25  . . . . . . . . . . . . . . . . 5mW/
SOIC package . . . . . . . . . . . . . . . . . . . . . . 500mW
Derate above +25 . . . . . . . . . . . . . . . . .4mW/


Description

The XR-2207 is a monolithic voltage-controlled oscillator (VCO) integrated circuit featuring excellent frequency stability and a wide tuning range. The circuit provides simultaneous triangle and squarewave outputs over a frequency range of 0.01Hz to 1MHz. XR-2207 is ideally suited for FM, FSK, and sweep or tone generation, as well as for phase-locked loop applications. The XR-2207 has a typical drift specification of 20ppm/°C. The oscillator frequency can be linearly swept over a 1000:1 range with an external control voltage; and the duty cycle of both the triangle and the squarewave outputs can be varied from 0.1% to 99.9% to generate stable pulse and sawtooth waveforms.
