XEV90

Features: * Package: 68-Pin PLCC (only 18 pins used) dimensions 0.952 inches by 0.952 inches by 0.170 inches high* Meets Total Harmonic Distortion requirements for reliable 56 Kbps modems (-85 dB typical);* Integrated Low-Distortion Telephone Line Transformer* Integrated Ring Detection with active...

product image

XEV90 Picture
See larger image
SeekIC No. : 004548275 Detail

XEV90: Features: * Package: 68-Pin PLCC (only 18 pins used) dimensions 0.952 inches by 0.952 inches by 0.170 inches high* Meets Total Harmonic Distortion requirements for reliable 56 Kbps modems (-85 dB ty...

XEV90 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XEV90
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Package: 68-Pin PLCC (only 18 pins used) dimensions 0.952 inches by 0.952 inches by 0.170 inches high
* Meets Total Harmonic Distortion requirements for reliable 56 Kbps modems (-85 dB typical);
* Integrated Low-Distortion Telephone Line Transformer
* Integrated Ring Detection with active high and active low ouput signals
* Operates on either a single Power Supply of +5 or + 3 Volts;
* Solid-State Hookswitch Control with active high and active low inputs;
* FCC Part 68 Compliant;
* Extended Temperature Range available

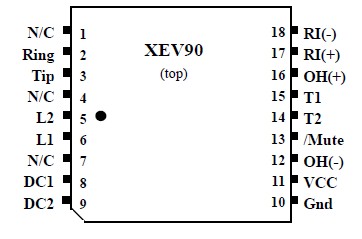

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Max
Typ
Max
Units
Power Supply Current Off-hook
10
mA
Off-hook
0.5
mA
Transmit Insertion loss 600 Ohm Impedance, 1800 Hz
4.5
6.0
7.0
dB
Receive Insertion loss 600 Ohm Impedance, 1800 Hz
4.5
6.0
7.0
dB
Line Matching Impedance Input to T1 and T2
300
320
340
ohms
Line Impedance 320 ohm matching impedance resistor
540
600
660
ohms
Total Harmonic Distortion 600 Ohm Impedance, 100 to 4000 Hz
-80
-85
dB
Ring Detect Sensitivity Min. AC voltage between Tip &
Ring Type B ringer
20
150
Vrms
Ring Frequencies Detected
16
68
Hz
RI Output Voltage Ring signal present, Active low
0.2
0.5
Volts
Ring signal present, Active High
2.0
5.0
Volts
Hook-Switch Control
Voltage (active high)		 ON: (off-hook)
0.5
0.5
Volts
OFF: (on-hook)
2.0
3.0
Volts
Hook-Switch Control
Voltage (active low)		 ON: (off-hook)
3.0
Volts
OFF: (on-hook)
2.0
0.2
0.5
Volts
Hook-Switch Control
Current		 ON: (off-hook)
5
10
milliamps
OFF: (on-hook)
5
microamps
Loop Current
(current draw from line)		 No Connection from DC1 to DC2
20
100
mA
DC1 shorted to DC2
10
60
DC On-Hook Impedance Hookswitch Open
10
MOhms



Description

Xecom's XEV90 is a complete DAA integrated into a compact PLCC package. The XEV90 supports analog data transfer to 56 KBPS. The 68-Pin PLCC package permits automated, high-volume assembly.

The XEV90 does not sacrifice performance for small size and surface-mount convenience. The heart of the XEV90 is a proprietary, low profile, low distortion transformer. This wide bandwidth, low distortion device provides the clear signal path required for 56 KBPS analog data transfer.

Like all Xecom DAA's the XEV90 is a complete telephone line interface. It includes the telephone line transformer, line current holding circuit, hookswitch and ring indicator. The XEV90 replaces the dozens of components found in a discrete DAA design.
