XE88LC01

Features: • Low-power, high resolution ZoomingADC• 0.5 to 1000 gain with offset cancellation• up to 16 bits ADC• up to 13 inputmultiplexer• Low-voltage low-power controller operation• 2 MIPS at 2.4 V to 5.5 V supply voltage• 300 A at 1 MIPS, 2.4 V to 5.5 V...

product image

XE88LC01 Picture
See larger image
SeekIC No. : 004548265 Detail

XE88LC01: Features: • Low-power, high resolution ZoomingADC• 0.5 to 1000 gain with offset cancellation• up to 16 bits ADC• up to 13 inputmultiplexer• Low-voltage low-power contro...

XE88LC01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE88LC01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-power, high resolution ZoomingADC
• 0.5 to 1000 gain with offset cancellation
• up to 16 bits ADC
• up to 13 inputmultiplexer
• Low-voltage low-power controller operation
• 2 MIPS at 2.4 V to 5.5 V supply voltage
• 300 A at 1 MIPS, 2.4 V to 5.5 V supply
• 22 kByte (8 kInstruction) MTP, 520 Byte RAM
• RC and crystal oscillators
• 5 reset, 18 interrupt, 8 event sources
• 100 years MTP Flash retention at 55°C


Application

• Internet connected appliances
• Portable, battery operated instruments
• Piezoresistive bridge sensors
• HVACcontrol
• Motor control


Pinout

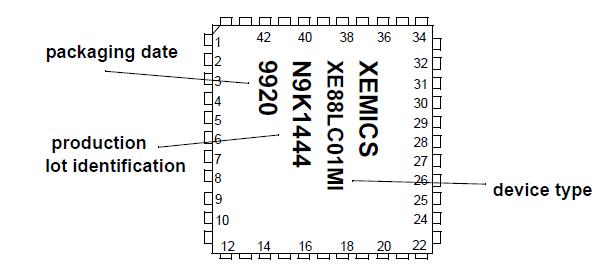

Connection Diagram


Specifications

Parameter Valéue
VBAT with respect to VSS

Input voltage on any input pin

Storage temperature

Storage temperature for programmed MTP devices		 -0.3V to 6.0V

VSS-0.3V to VBAT+0.3V

-55°C to 125°C

-40°C to 85°C



Description

The XE88LC01 is an ultra low-power microcontroller unit (MCU) associated with a versatile analog-to-digital converter (ADC) including a programmable offset and gain pre-amplifier (PGA) .

XE88LC01 is available with on chip Multiple-Time-Programmable (MTP) Flash program memory and ROM.
