XE3005

Features: • Ultra low-power consumption, below 2 mW• Low-voltage operation down to 1.8 V• Sandman™ function to reduce system power consumption (XE3006)• Single supply voltage• Adjustable sampling frequency: 4 48 kHz• Digital format: 16 bit 2s complement&#...

product image

XE3005 Picture
See larger image
SeekIC No. : 004548250 Detail

XE3005: Features: • Ultra low-power consumption, below 2 mW• Low-voltage operation down to 1.8 V• Sandman™ function to reduce system power consumption (XE3006)• Single supply v...

XE3005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE3005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra low-power consumption, below 2 mW
• Low-voltage operation down to 1.8 V
• Sandman™ function to reduce system power consumption (XE3006)
• Single supply voltage
• Adjustable sampling frequency: 4 48 kHz
• Digital format: 16 bit 2s complement
• Requires a minimum number of external components
• Easy interfacing to various DSPs
• Direct connection to microphone and speaker
• Various programming options


Application

• Wireless Headsets
• Bluetooth™ headset
• Hands-free telephony
• Digital hearing instruments
• Consumer and multimedia applications
• All battery-operated portable audio devices

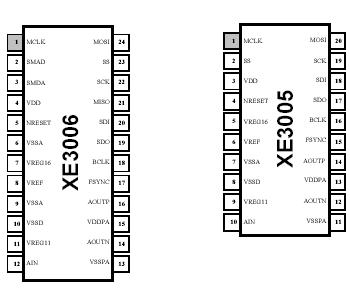

Pinout

Connection Diagram


Description

The XE3005 is an ultra low-power CODEC (Analog to Digital and Digital to Analog Converter) for voice and audio applications. XE3005 includes microphone supply, preamplifier, 16-bit ADC, 16-bit DAC, serial audio interface, power management and clock management for the ADC and the DAC. The sampling frequency of the ADC and of the DAC can be adjusted from 4 kHz to 48 kHz. The XE3006 also includes the Sandman™ function, which signals whether a relevant voice or audio signal is present for the ADC or DAC.
