XE2420

Features: · Small Size: The HyPLCC™ measures less than 1 inch by 1inch square and 0.290 inches thick· Surface-mountabile: The HyPLCC™ package is equivalent to a 68-Pin PLCC device.· Data transfer at 2400, 1200 and 300 BPS using V.22bis, V.22, V.23, V.21, Bell 202, Bell 212A, and Bell 1...

product image

XE2420 Picture
See larger image
SeekIC No. : 004548241 Detail

XE2420: Features: · Small Size: The HyPLCC™ measures less than 1 inch by 1inch square and 0.290 inches thick· Surface-mountabile: The HyPLCC™ package is equivalent to a 68-Pin PLCC device.· Data...

XE2420 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE2420
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Small Size: The HyPLCC™ measures less than 1 inch by 1inch square and 0.290 inches thick
· Surface-mountabile: The HyPLCC™ package is equivalent to a 68-Pin PLCC device.
· Data transfer at 2400, 1200 and 300 BPS using V.22bis, V.22, V.23, V.21, Bell 202, Bell 212A, and Bell 103 Protocols
· Modem Control and Configuration via industry standard AT Commands.
· Supports external shared line features permitting unobtrusive sharing of a local telephone line.
· Complete integrated DAA includes, Ring Detect,Loop Current Holding Circuit, Hook Switch. Metalic Surge Protection, and Telephone Line Transformer
· User Transferrable FCC Part 68 Registration
· UL60950 Recognition
· Low Power operation, 330 milliWatt; Power down operation less than 1 microWatt


Pinout

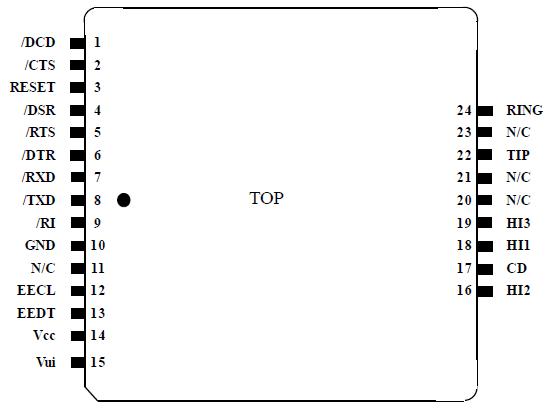

Connection Diagram


Specifications

Storage Temperature -25 to +85
Operating Temperature Range1 0 to +70
Maximum Time Above Eutectic (183) 90 seconds
Preheat Dwell Time 120 to 180 seconds
The XE2420 can be ordered with an Operating Temperature of -40 to +85 at extra cost. Order XE2420-ITR or
to specify Industrial Temperature Range (ITR).


Description

Xecom's XE2420 provides a complete 2400 BPS modem into an inexpensive miniature, surface-mount package. Xecom's new HyPLCC™ package (Hybrid PLCC) makes it possible to meet the conflicting goals of small size, low cost and surface-mountability. The XE2420 targets remote monitoring applications in industrial, commercial and residential locations

As a complete modem, the XE2420 includes not only all modem circuitry but also user transferrable FCC Part 68 Registration and UL60950 recognition. This allows the XE2420 to be safely integrated into your embedded application.

Xecom's new HyPLCC™ package infuses the XE2420 with both its small size and surface mountability. The HyPLCC package allows complex hybrid circuits to fit the 68-Pin PLCC footprint. The HyPLCC™ package provides a completely sealed enviroment protecting the XE2420 during assembly and board cleaning operations.
